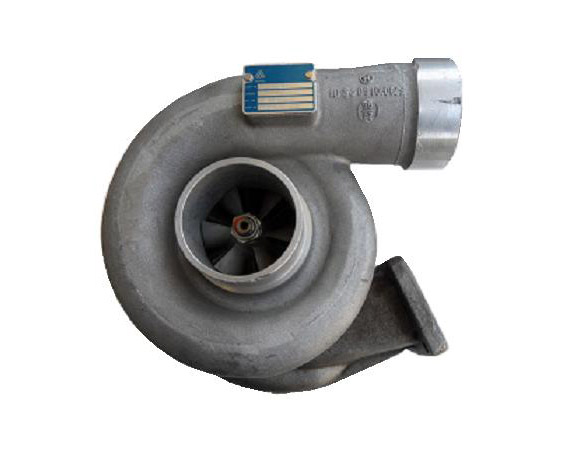

SUPART MAN, DAEWOO Commercial Truck, Bus , Industrial 3HF Turbo 52309884233

1973-01 MAN Industrial Engine with D2156MT-TME Engine

1973-01 Raba Industrial Engine with D2156MT-N1 Engine

1973-01 MAN Truck with D2156MT2, D2156MT-N1 Engine

1973-01 Daewoo Truck, Bus with D2156MT Engine

Part Number	52309884233
Previous Part Number	5230-988-4233, 52309704233, 52309884228, 53289887015, 53289887016
OE number	51-09100-7002, 51-09100-7046, 51-09100-7031, 51-09100-7046, 51-09100-7044, 51-09100-6031
Year	1973-01
Description	MAN, DAEWOO Commercial, Industrial, Truck, Bus
Manufacturer Part Number	52309704233, 53289707015, 53289707016, 52309884228, 5230-970-4233, 5328-970-7015, 5328-970-7016, 5230-988-4228
CHRA	52307100005 (5230-710-0005)
Turbo Model	3HF-7031, 3HF352/20
Engine	D2156MT, D2156MT2, D2156MT-N1, D2156MT-TME
Displacement	11.97L, 11970 ccm
KW	228/310
RPM Max	2200
Fuel	Diesel
Angle α (compressor housing)	315°
Angle β (turbine housing)	180°
Bearing Housing	52301510007
Turbine Wheel	52301202115
Comp. Wheel	52301232007 (52301232001, 159608, 57955, 144215-0000)(9N2378)(Ind. 62.4 mm, Exd. 93.7 mm, 6+6 Blades, Flatback)(1250040400)
Back plate	52301523001
Heat shield Number	N/A
Repair Kit	52307110001 (52307110000, 185281, 318371)
Turbine Housing	52301016906
Compressor Cover	52301015008
Turbine Housing AR	23
Replaced by	53289887016
NOTE	Replacement turbo is not a drop-in
Manufacturer	Borg Warner - 3K - Schwitzer
