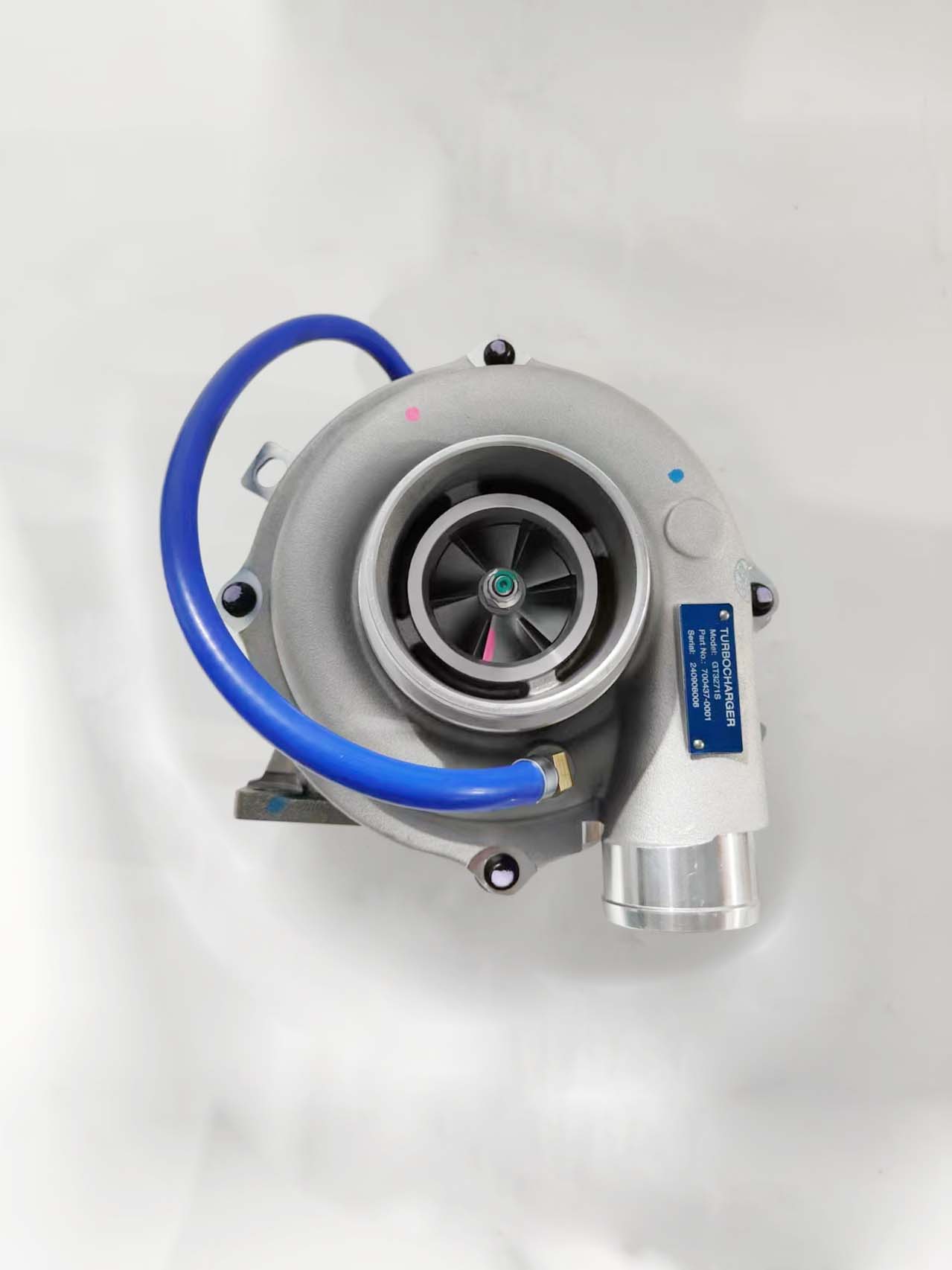

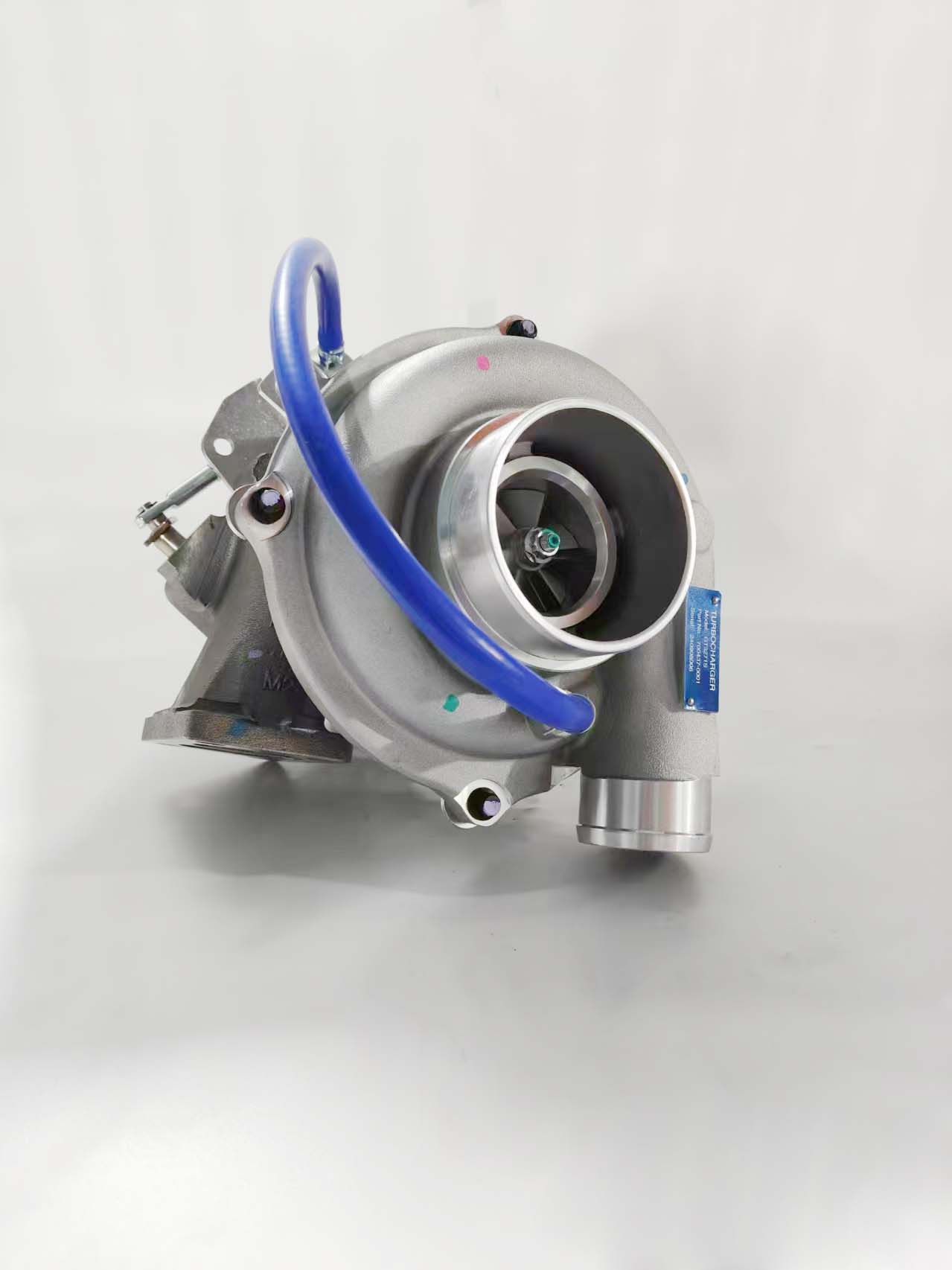

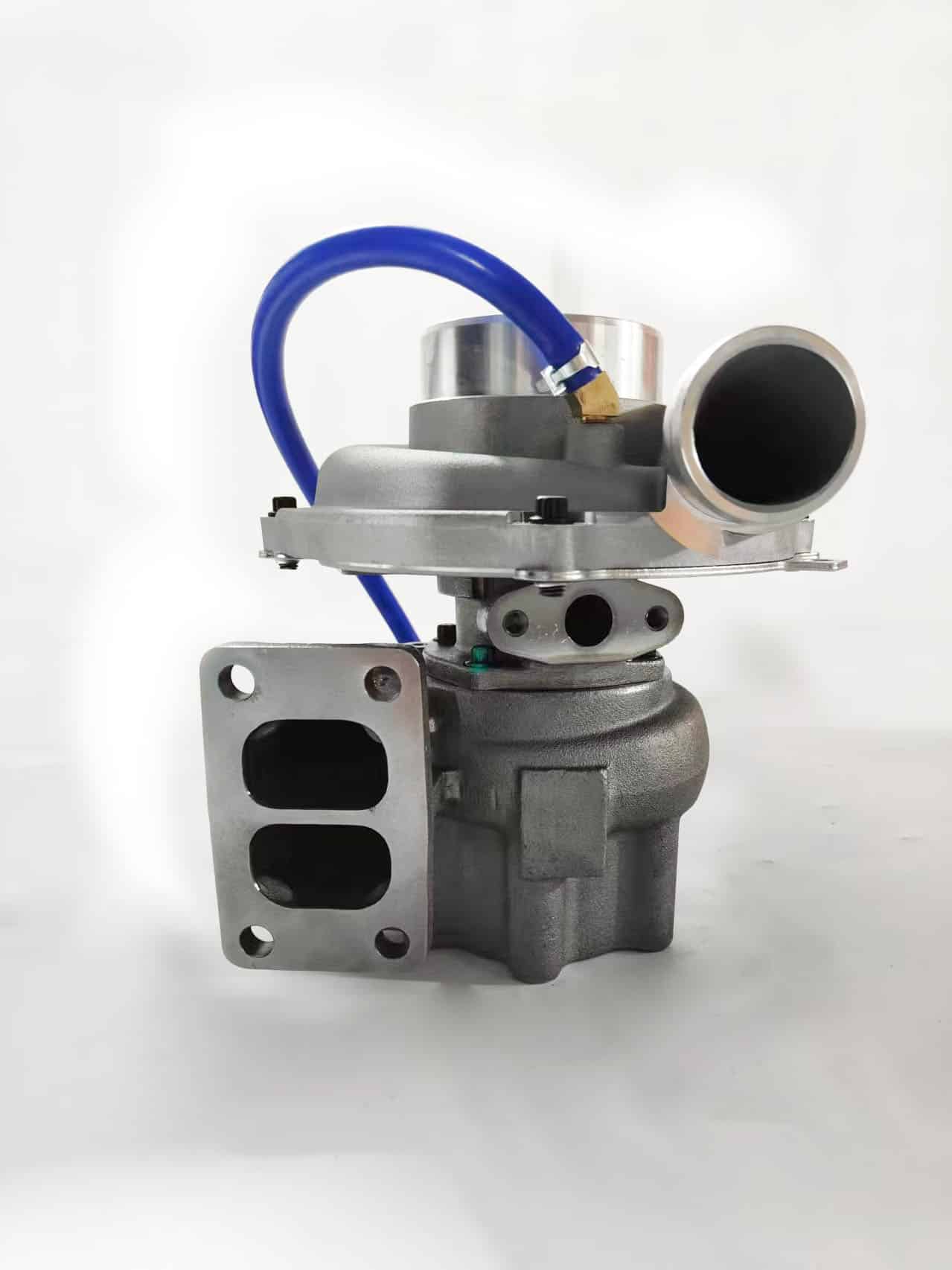

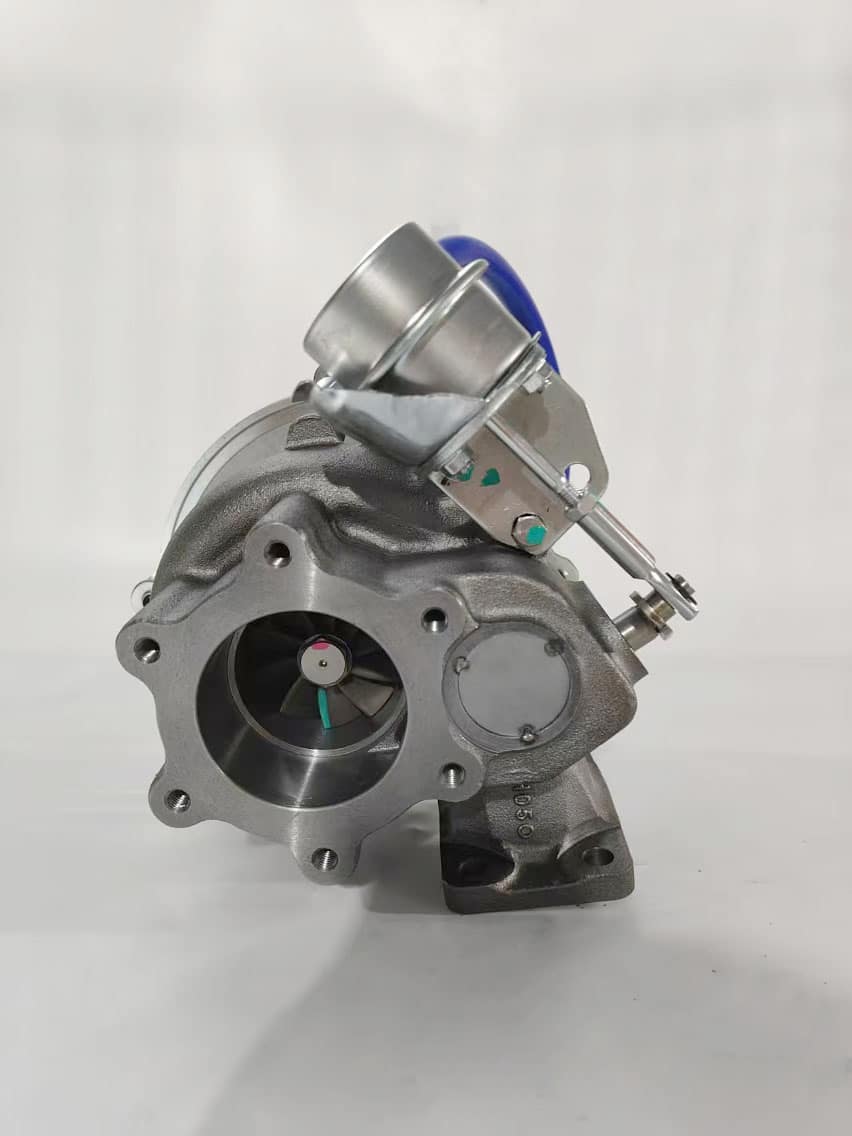

| Part Number |
700437-0001 |
| Previous Version |
700437-5001S, 7004370001 |
| OE Number |
RE71395, RE71430, SE502179, RE26409, RE67318, SE502208 |
| Description |
Engine & Power Units 672CH Graders Various |
| Turbo Model |
GT3271, GT3271S |
| CHRA |
451961-0008 (451961-5008S) $980.52 |
| Engine Manufacturer |
John Deere |
| Engine |
6068T, 6068, 670C,672CH, 670CH, 6068HDW53, 6068HDW55, 6068HDW58, 6068HDW61 |
| Displacement |
6.8L, 6800 ccm, 6 Cylinders |
| Model |
670C, 670CH, 672CH |
| S/N |
582130-, -582129 |
| Fuel |
Diesel |
| Bearing Housing |
447535-0008 (Oil Cooled) |
| Turbine Wheel |
434444-0007 (Ind. 64. mm, Exd. 54.7 mm, Trm 10.26, 10 Blades)(1100016325) |
| Comp. Wheel |
434244-0007 (434244-0019)(Ind. 49.14 mm, Exd. 70.99 mm, Trm 4.7, 6+6 Blades, Superback) |
| Back plate |
448352-0008 |
| Heat shield Number |
447553-0006 (2030016048B) |
| Repair Kit |
709147-0001 (1102032750, 5000010173) |
| Turbine Housing |
435066-0056 |
| Compressor Cover |
409589-0473 (448343-0073) |
| Actuator |
452603-0007 (472550-0009)(RE63920, RE501630) |
| Gasket (turbine inlet) |
409039-0001 (210190-0000, 132044, 312617)(R43751, R123572)(Stainless Steel) |
| Manufacturer |
Supart machinery |
