Compressor Wheel for HX50 Turbochargers
Part Number: 3524287
Fits:
- Engines: Detroit Diesel Series 60, Series 60 (VGT) on EPA07, 8460.41 Euro 2
- Turbo Models: HE531VE, HX50, HX50W, HX50W-E9851BA/WP17PC3
- Applications:
- Mack Trucks (E6-275, E6-300, EM6-300, EM6-350, ENDT672, ENDT673, ENDT673C, ENDT711, ETA677, ETSX677, ETSZ677, ETY673, ETY675, ETZ673E, ETZ675 Diesel Engines)
- Fire Trucks (Various with 14.0L Detroit Diesel Series 60, Series 60 (VGT) on EPA07 Diesel Engine)
- Freightliner, Kenworth, Peterbilt (with 14.0L Detroit Diesel Series 60, Series 60 (VGT) on EPA07 Diesel Engine)
- Iveco Trucks (190 E 38 with 8460.41 Euro 2 Engine)
Replaces:
- Turbo Part Numbers: 3536816, 3580250, 3580251, 3580257, 3580935, 3781169, 3792069, 4042439, 4047598, 5352845
- OEM Part Numbers: 23536422, 23536802, 23539062, 23539570, 61321201, 631GC5114X, 631GC5118P5X, 631GC5134P4X, 631GC5134X, R23536422, R23539062

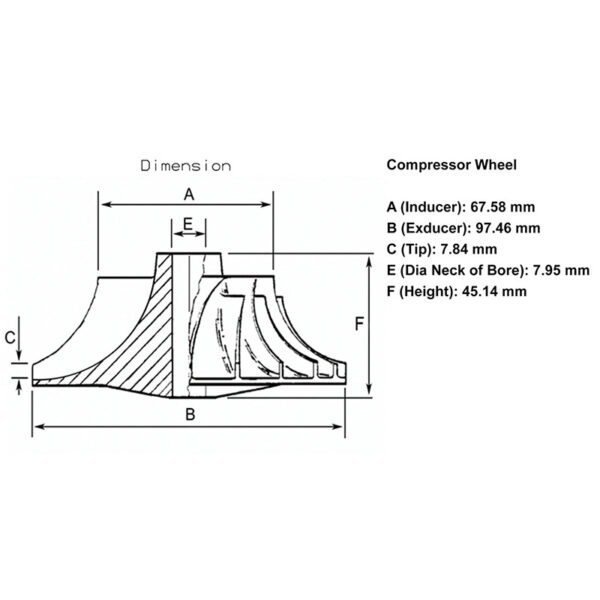

Specifications:
- Material: Aluminum
- Exducer: 98mm
- Inducer: 67 mm
- Tip: 7.84 mm
- Dia Neck of Bore: 7.95 mm
- Height: 45.14 mm
