| Part Number | VA520069 |
| Previous Version | VA520022, VB520022, VC520022, VD520022, VF520022 |
| OE number | 114400-4303, 1144004301, 1144004302, 1144004303, 1144004306, 1-14400-4303, G82VCD-S0022B, G82VCD-S0022G, G82VCDS0022B, G82VCDS0022G |
| V-SPEC. | VIEI |
| Description | Truck |
| Model | 6WF1T, P414 |
| CHRA | N/A |
| Turbo Model | RHG8V, RHG8V-120006P29NHBRB674DUBT |
| Engine | 6WF1T, 6WF1/P414 |
| Engine Manufacturer | Isuzu |
| Fuel | Diesel |
| Angle α (compressor housing) | 65° |
| Angle β (turbine housing) | 26° |
| Bearing Housing | (Water Cooled) |
| Comp. Wheel | (Ind. 66.34 mm, Exd. 92.01 mm, 6+6 Blades, SuperBack) |
| Repair Kit | |
| Turbine Housing AR | 29 |
| Manufacturer | IHI |
Isuzu

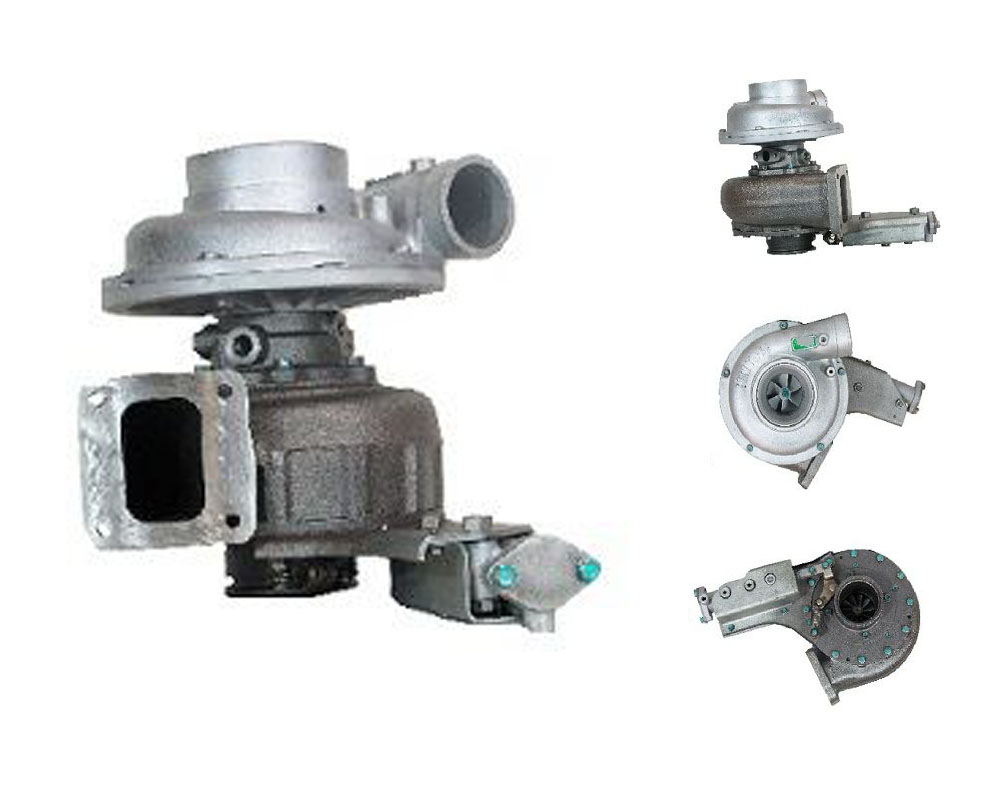

Isuzu Truck I.H.I SUPART RHG8V Turbocharger VA520069 VIEI
Applications
Isuzu, Hitachi Truck 6WF1/P414
