| Part Number | 700716-5009S |
| Previous Version | 700716-0001, 700716-0003, 700716-0004, 700716-0005, 700716-0006, 700716-0009, 700716-1, 700716-3, 700716-4, 700716-5, 700716-6, 700716-9 |
| OE number | 8972089663, 8971894520, 8972089663, 8971894520, 8972089661, 8972089663 |
| Year | 1997-04 |
| Description | GMC W.4500, Highway Truck NKR NPR, NQR |
| CHRA | 431876-0109 (431876-5109S) |
| Turbo Model | GT2560S, GT2560LS, TB28 |
| Engine Model | 4HE1XS, 4HE1XSEuro 3 |
| Displacement | 4.8L, 4800 ccm, 4 Cylinders |
| GENERAL MOTORS | GMC W.4500 |
| KW | 125/170 |
| RPM Max | 2800 |
| Fuel | Diesel |
| Bearing Housing | 479807-0012/479802-0002 |
| Turbine Wheel | 435737-0010 (Ind. 53.82 mm, Exd. 46.96 mm, Trm 62, 10 Blades) |
| Comp. Wheel | 445436-0001 (Ind. 46.52 mm, Exd. 60.13 mm, Trm 2.30, 6+6 Blades) |
| Back plate | 432280-0001 (1100025300) |
| Heat shield Number | 431055-0003/431055-0001 |
| Repair Kit | 709143-0001 (1100025761) |
| Turbine Housing | 700717-0003 |
| Compressor Cover | 733916-0028/701390-0002 |
| Turbine Housing AR | 0.60 |
| Actuator | 700174-0038 |
| Gasket (oil outlet) | 210636 (2445067, Paper) |
| Gasket (turbine inlet) | 210973 (8-97374-412-0) |
| Gasket (turbine outlet) | 210974 (8-97039-777-1) |
| Manufacturer | Honeywell-Garrett |
Isuzu

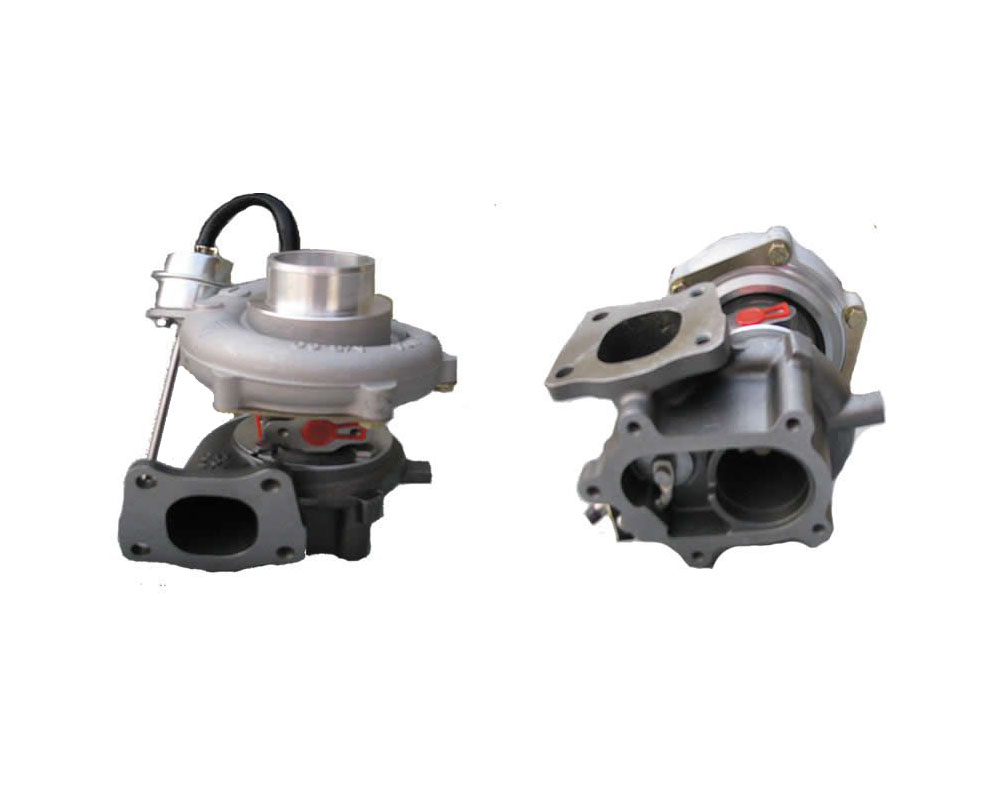

Isuzu Truck NPR Highway Truck SUPART TB2560S Turbo 700716-0009
Applications
1997-04 Isuzu Truck NPR, NQR with 4HE1XS Engine
