| Part Number | 49131-05500 |
| Previous Version | 4913105500 49131-05501, 4913105501, 49131-02530, 49131-02531, 49131-02520, 49131-02540, 49131-05511, 49131-05521, 49131-05530, 49131-05531 |
| OE number | 504242763, 504242763 EB 54-2401, 504268749 EC 54-2401, 504374795 |
| Description | Iveco Agricultural KUBOTA - BOBCAT Construction |
| CHRA | 49131-08400 (1401403906, 1000050168) |
| Turbo Model | TD03-07T-06 |
| Engine | F5C, L185, C185, L180, 3D100, V2003-M-DI-T-EBB, S4Q2 |
| Engine Manufacturer | Iveco |
| Displacement | 3.0L, 3000 ccm |
| Fuel | Diesel |
| NSN | 2950-01-566-4607, 2950015664607 |
| Bearing Housing | 49135-20401 (1401403452)(1900011212C) |
| Turbine Wheel | (Ind. 34.82 mm, Exd. 38.85 mm, 11 Blades)(1401403437)(1100016096) |
| Comp. Wheel | (Ind. 31.9 mm, Exd. 44.01 mm, 6+6 Blades, Superback)(1401403400)(1200016211) |
| Back plate | (1401402300, 1800015052)(1800016046) (Super back) |
| Heat shield Number | (1401403340, 2030-016-106B) |
| Repair Kit | (5000050028) |
| Turbine Housing | 49131-10600 |
| Replaced | 49131-05510, 49131-05511, 49131-05521, 49131-05531 |
| Manufacturer | Mitsubishi |
Iveco

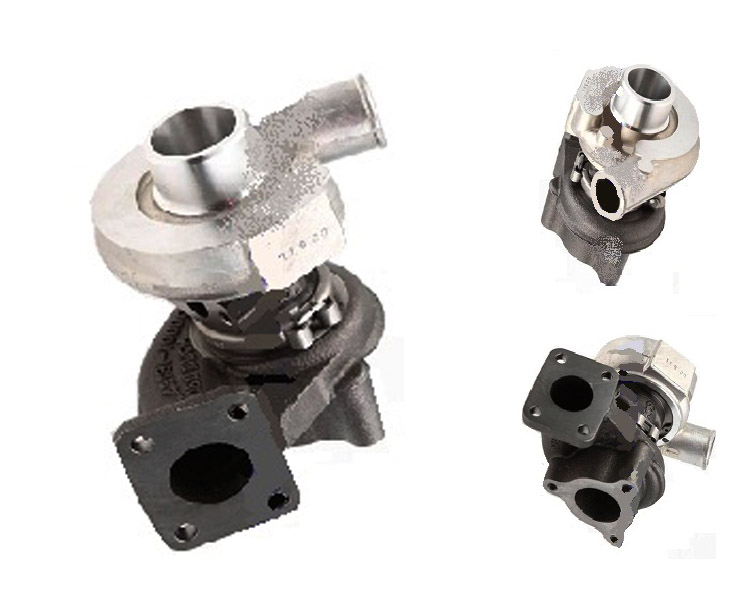

Iveco Agricultural SUPART TD03 Turbo 49131-05500
Applications
2007- Iveco Agricultural (KUBOTA-BOBCAT)Tractor with F5C Engine
