| Part Number | 465468-5009S |
| Previous Version | 465468-0001, 465468-0016, 465468-0009, 465468-1, 465468-9 |
| OE number | 4765459, 4732533 |
| Description | Iveco FD30B Truck, Agricultural, FD30B Machinery |
| CHRA | 408105-0220 (408105-5220S) |
| Turbo Model | T04B05 |
| Engine | 8210.45.5000, 8365.25.532-3 |
| Engine Manufacturer | Garner |
| Displacement | 17.2L, 17200 ccm, v8 Cylinders |
| Fuel | Diesel |
| KW | 279/380 |
| Angle a (compressor housing) | 300º |
| Angle ß (turbine housing) | 270º |
| Bearing housing | 430027-0022 |
| Turbine Wheel | 451309-0003 (155-5236) |
| Comp. Wheel | 442198-0001 |
| Back plate | 408045-0051 (AR54934) |
| Heat Shield | 409299-0001 |
| Repair Kit | 468100-0000 |
| Turbine Housing | 410270-0032 |
| Compressor Cover | 408566-0422 |
| Turbine Housing AR | 1.14 |
| Gasket (turbine inlet) | 409039-0001 |
| Gasket oil inlet | 210023 |
| Gasket (oil outlet) | 210021 |
| Gasket (turbine outlet) | 409196-0003 |
| Manufacturer | Honeywell-Garrett |
Iveco

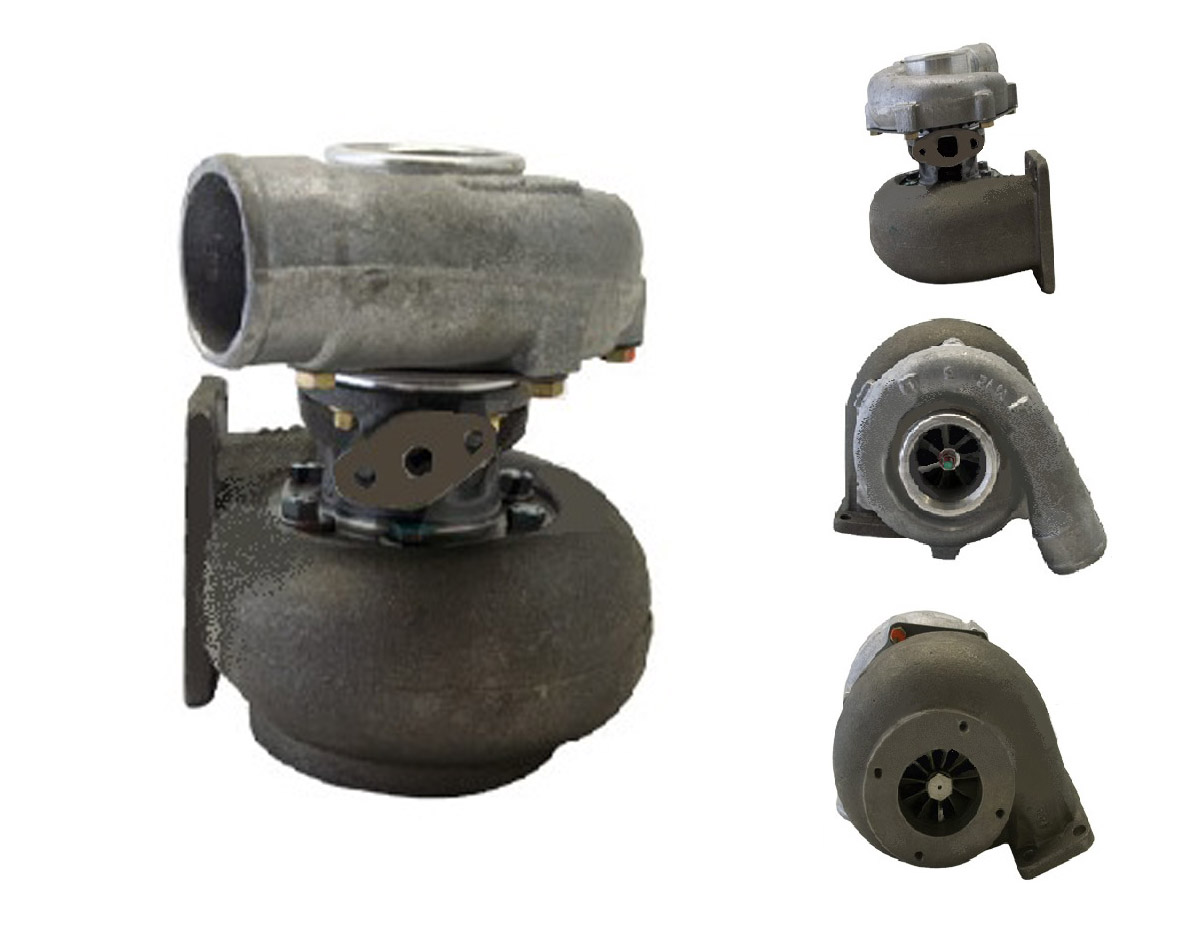

Iveco FD30B Truck, Agricultural SUPART T04B05 Turbocharger 465468-0009
Applications
Iveco Truck, Agricultural 190.38 with 8365.25.532-3 Engine
