| Part Number | 49135-05000 |
| Previous Part Number | 4913505000, 53149886446 |
| OE number | 500321800, 99450703, 1S7Q6KK682BH |
| Year | 1996-05 |
| Description | Commercial Iveco-Sofim Daily 2.8 TCA 49.12 / 59.12 / 60.12 / 70.12 |
| Application | DAILY 49.12, 59.12, 60.12, 70.12 |
| Engine Code | 8140.43.3700 |
| Manufacturer Part Number | 49135-05000 |
| CHRA | 49135-08100 (49135-08101) |
| Turbo Model | TD04, TF035HM-13T-6 |
| Engine | 8140.43.3700 Euro 2 |
| Displacement | 2.8L, 2800 ccm, 4 Cylinders |
| KW | 90/122 |
| RPM Max | 3500 |
| Fuel | Diesel |
| Angle α (compressor housing) | 345° |
| Angle β (turbine housing) | 357° |
| Bearing Housing | 49177-25420 (Oil Cooled) |
| Turbine Wheel | 49135-30100 |
| Comp. Wheel | 49135-00015 |
| Back plate | 49135-00044 |
| Heat shield Number | 49170-19100 |
| Repair Kit | 49135-TFO35 |
| Turbine Housing | 49135-15000 |
| Compressor Cover | 49135-00080 |
| Turbine Housing AR | 6.0 |
| Actuator | 49135-18801 |
| Settings Waste gate (pressure) | 1.290/1.450 bar |
| Settings Waste gate (lift shaft) | 1.00/5.00 mm |
| Gasket (turbine inlet) | 210338 |
| Gasket (turbine outlet) | 210350 |
| Gasket (oil outlet) | 210243 |
| NOTE | Inter-cooler |
| Manufacturer | Borg Warner - 3K - Schwitzer |
| Replaced By | 53149886446 |
Iveco

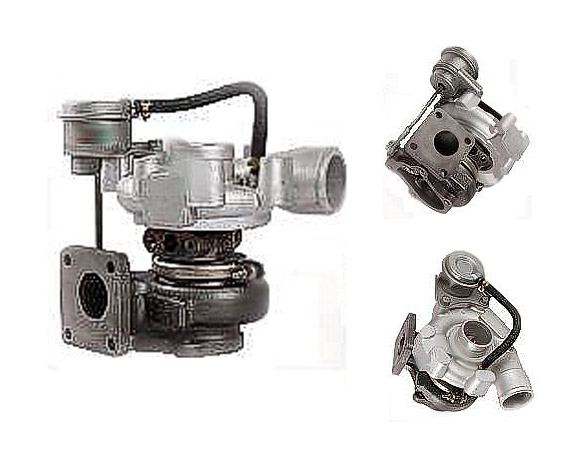

Iveco-Fiat Commercial Vehicle SUPART TD04 Turbo 49135-05000
Applications
1996-05 Iveco-Sofim Daily 2.8L TD 8140.43.3700 Euro 2 Engine
