| Part Number | 53039880089 |
| Previous Version | 5303-988-0089 |
| OE number | 504071262 |
| Year | 2003-10 |
| Description | Iveco Daily Commercial |
| Manufacturer Part Number | 53039700089, 5303-970-0089 |
| CHRA | 53037100519 (5303-710-0519)(1302003919, 1000030110) |
| Turbo Model | K03-2074CCB5.88KCAXD |
| Engine | 2.3-F1A Euro 3 |
| Displacement | 2.3L, 2300 ccm, 4 Cylinders |
| KW | 81/110 |
| RPM Max | 3900 |
| Fuel | Diesel |
| Angle α (compressor housing) | 288° |
| Angle β (turbine housing) | 180° |
| Bearing Housing | 53041510003 (53041500003, 53041500004, 53041500010, 53041500011, 53041500014, 53041510001)(Oil cooled)(1900011084) |
| Turbine Wheel | 53031205037 (53031205000, 53031205002, 53031205008, 53031205010, 53031205012, 53031205013, 53031205014, 53031205017, 53031205023, 53031205025, 53031205027, 53031205029)(Ind. 45. mm, Exd. 40.3 mm, Trm 6.8, 11 Blades)(1302003435, 1100030031) |
| Comp. Wheel | 53041232202 (53041232200)(Ind. 37.8 mm, Exd. 51. mm, Trm 6.4, 6+6 Blades, Superback)(1302003405, 1200016106) |
| Back plate | 53041515716 (53031515716, 53041515712)(1302003305, 1300016042) |
| Heat shield Number | 53031652000 (1302003340, 2030016011) |
| Repair Kit | 53037110001 (1302003753, 5000040104) |
| Turbine Housing | 53031009091 |
| Compressor Cover | 53041015033 |
| Turbine Housing AR | 5 |
| Actuator | 50040720016 |
| Settings Waste gate (pressure) | 1.400 bar |
| Settings Waste gate (lifting rod) | 2.20 mm |
| Gasket (turbine inlet) | 210634 |
| Gasket (turbine outlet) | 210350 (Stainless Steel) |
| Gasket Kit | 215174 (2090505296) |
| Gasket (oil outlet) | 210317 (Paper) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Iveco

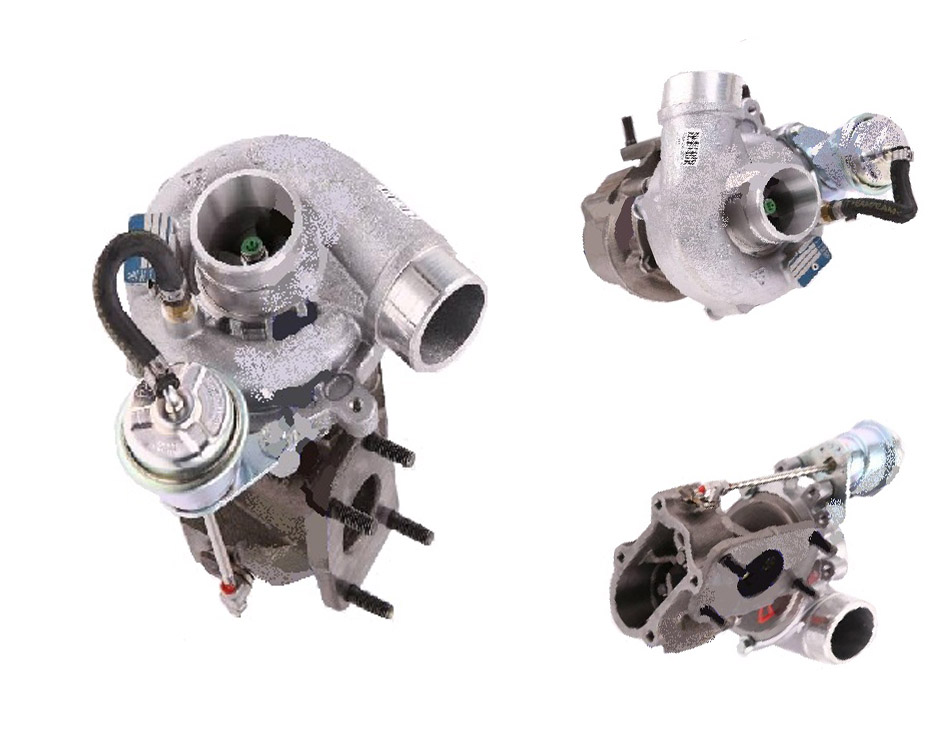

Iveco-Sofim Daily Commercial Vehicle SUPART K03 Turbo 53039880089
Applications
2003-10 Iveco-Sofim Commercial Daily 2.3L TD with 2.3-F1A Euro 3 Engine
