| Part Number | 465481-5002S |
| Previous Version | 465481-0001, 465481-0002, 465481-9002, 465481-2 |
| OE number | 500373235, 98429358 |
| Year | 1996-99 |
| Description | Truck Eurostar 190.E47, Iveco - Fiat, Ford, Iveco City Bus 315.17 |
| Fitted To Model | 190E48 18.8L, City Bus 315.17 |
| CHRA | 710507-0002 (710507-5002S) |
| Turbo Model | TBP4802 |
| Engine | 8060.25.4600, 13.8l 8210.42.5000 |
| Engine Manufacturer | Iveco |
| Displacement | 13.78L, 13780 ccm, 6 Cylinders |
| KW | 285 |
| RPM Max | 1800 |
| Fuel | Diesel |
| Angle α (compressor housing) | 343º |
| Angle β (turbine housing) | 123º |
| Bearing Housing | 452698-0009 |
| Turbine Wheel | 441194-0009 |
| Comp. Wheel | 435769-0001 |
| Back plate | 710509-0001 |
| Heat shield Number | 410366-0004 |
| Repair Kit | 468132-0008 |
| Turbine Housing | 435066-0006 |
| Compressor Cover | 409589-0230 |
| Turbine Housing AR | 1.22 |
| Actuator | 432950-0009 |
| Settings waste gate (pressure) | 1.480-1.550 bar |
| Settings Wastegate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 409038-0000 (2405021, 52231083002) |
| Gasket (turbine outlet) | 210239 (2465017, Stainless Steel) |
| Gasket oil inlet | 210019 (2485006) |
| Gasket (oil outlet) | 210060 (2475021 ) |
| Stud (turbine housing outlet) | 210156 |
| Replaced By | 465481-0001, 465481-0003 |
| Manufacturer | Honeywell-Garrett |
Iveco

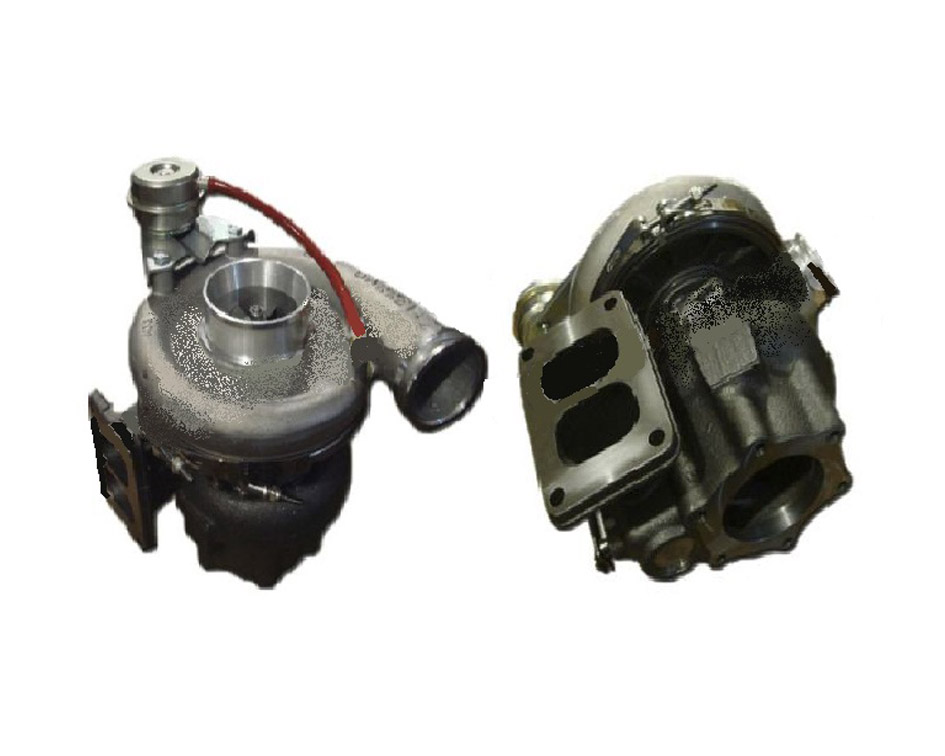

Iveco Truck Eurostar 190.E47 SUPART TBP4802 Turbocharger 465481-0002
Applications
1996-99 Iveco Truck Eurostar 190.E47 with 8210.42.5000 Engine
