| Part Number | 5322526 |
| Previous Version | 3773780, 3791425, 4046928, 4033191, 4033191H, 4033191HX, 4033309HX |
| OE number | 05042521460, 05042521480, 05042522340, 05042522350, 504252235, 504252234, 504252148, 504252146, 5042521460, 5042522340, 5042522350, 5042521480 |
| Description | Truck |
| Manufacturer Part Number | 4046929, 4046930, 4046931, 4046932 |
| CHRA | 4034044 (4034029) $1890.00 |
| Turbo Model | HY40V, HE400VG |
| Engine | CURSOR 8 |
| Capacity | 7.8L, 7800 ccm |
| Power | 275 HP |
| Cylinder | 6L |
| Engine Model | CURSOR 8-F2B |
| Set speed sensor | 4027556 $188.21 |
| Fuel | Diesel |
| Angle α (compressor housing) | 55/270/299º |
| Angle β (turbine housing) | 230/300º |
| Turbine Wheel | 3595129 (Ind. 67. mm, Exd. 76. mm, 12 Blades) |
| Comp. Wheel | 3598705 |
| Repair Kit | 4031440 (1154040750) |
| Turbine Housing AR | VGT |
| VG actuator Kit | 4031461 |
| Gasket (turbine inlet) | 210140 |
| Replaced By | 4033191 |
| Manufacturer | HOLSET |
Iveco

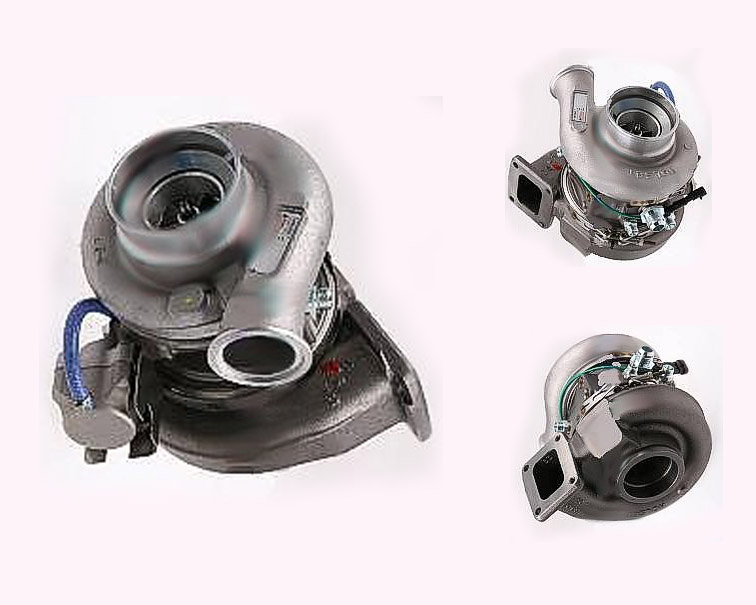

Iveco Truck SUPART HY40V Turbo 5322526
Applications
2005-07 Iveco Truck F2B with CURSOR 8 Engine
