| Part Number | 466698-5005S |
| Previous Version | 466698-0005, 466698-5, 466698-0002 |
| OE number | 4814851 |
| Description | Allis, Hit. Truck |
| CHRA | 409172-0044 (409172-5044S, 409853-0001, 409172-0020) |

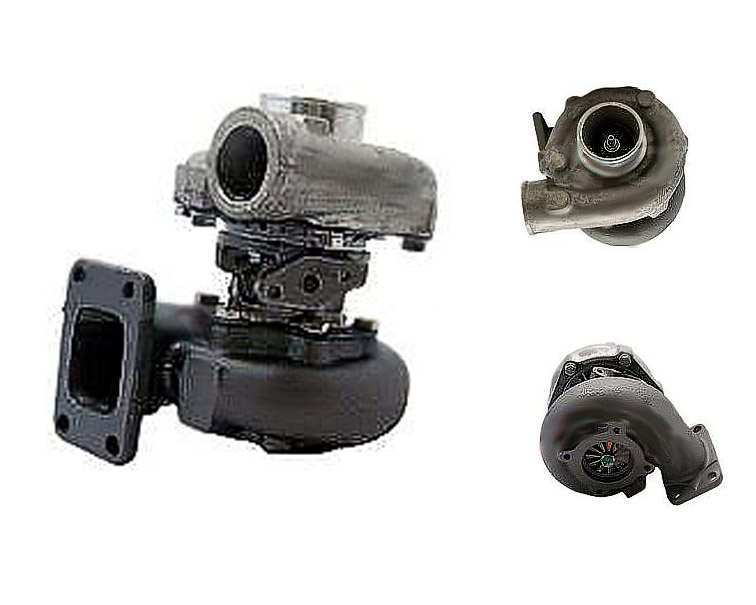

| Turbo Model | TA3118 |
| Engine | 8045.25.390 |
| Engine Manufacturer | Iveco |
| Displacement | 3.9L, 3900 ccm, 4 Cylinders |
| KW | 81 |
| RPM Max | 2500 |
| Fuel | Diesel |
| Angle α (compressor housing) | 0º |
| Angle β (turbine housing) | 0º |
| Bearing Housing | 430027-0025 (430027-0022, 430027-0048) (186879, 186881)(1100030450)(Oil Cooled) |
| Turbine Wheel | 451310-0003 (451310-0006)(Ind. 48.5 mm, Exd. 65. mm, Trm 56, 11 Blades)(1100030436, 1100030438) |
| Comp. Wheel | 409096-0008 (409096-0014, 409096-0001) (103016-0000)(Ind. 40.5 mm, Exd. 60.1 mm, Trm 45, Superback, 6+6 Blades) (1100030401) |
| Back plate | 409629-0003 (409629-0006, 409629-0004, 409629-0001) (1100030300) |
| Heat shield Number | 409627-0000 (103121-0000)(1100030340) |
| Repair Kit | 468139-0000 (707897-0001)(318377, 166587)(1252102750)(Dynamic) |
| Turbine Housing | 441325-0040 |
| Compressor Cover | 409115-0106 |
| Turbine Housing AR | 1.06 |
| Gasket (turbine inlet) | 409039-0001 (210190-0000, 132044, 312617)(Stainless Steel, Single Port) |
| Gasket (turbine inlet) | 210315 (Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) (Paper) |
| Manufacturer | Honeywell-Garrett |
