| Part Number | 466874-5005S |
| Previous Version | 466874-0005, 466874-0001, 466874-0002, 466874-0003, 466874-0004, 4668740005 |
| OE number | RE53173, RE30239, RE61594, RE53845 |
| Description | Excavator, Skidder, Tractor |
| CHRA | 443853-0034 (443853-5034S) |
| Turbo Model | TA2501 |
| Engine | 3179T |
| Engine Manufacturer | John Deere |
| Displacement | 2.9L, 2930/2933 ccm, 3 Cylinders |
| KW | 62 |
| Angle α (compressor housing) | 198º |
| Angle β (turbine housing) | 2º |
| Bearing Housing | 435349-0012 (Oil Cooled) |
| Turbine Wheel | 435257-0005 (435257-0002, 435257-0003, 435737-0004)(Ind. 52.8 mm, Exd. 39.32 mm, 11 Blades)(1100025436) |
| Comp. Wheel | 431350-0018 (Ind. 34.45 mm, Exd. 52. mm, Trm 44, 8+8 Blades) |
| Back plate | 430735-0001 (430612-0003)(1100025300) |
| Heat shield Number | 431055-0001 (431055-0003) |
| Repair Kit | 709143-0001 (200423-0000, 707903-0002)(1100025761) |
| Turbine Housing | 432106-0002 |
| Compressor Cover | 431022-0008 |
| Turbine Housing AR | 0.68 |
| Gasket (turbine inlet) | 210218 (Stainless Steel) |
| Manufacturer | Honeywell-Garrett |
John Deere

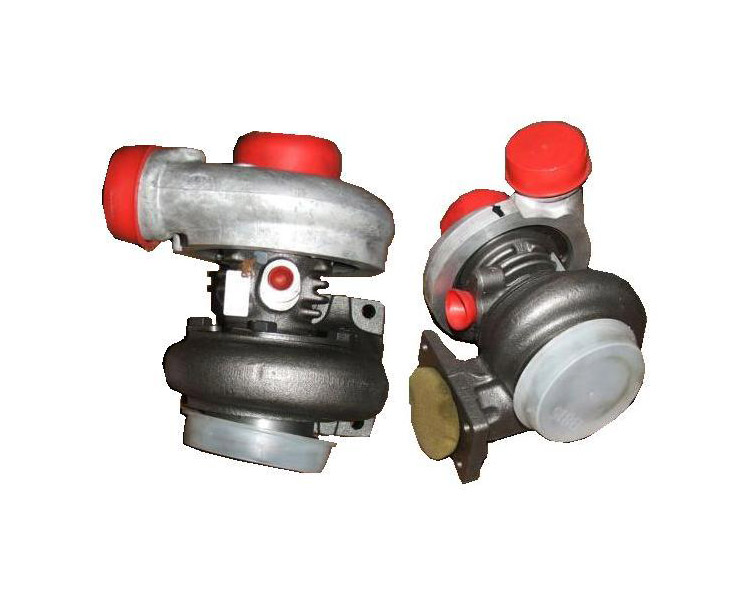

John Deere 1950 Agricultural Tractor, Skidder SUPART TA2501 Turbo 466874-0005
Applications
1995- John Deere 1950 Agricultural Tractor, Skidder Tractor with 3179T Engine
