| Part Number | 471049-5002S |
| Previous versions | 471049-0001, 471049-0002, 471049-0003, 471049-9002, 471049-9001S, 471049-2 , 471049-0008, 471049-0012 |
| OE number | RE64927, RE540549, RE540663, RE556695, RE564495, RE567044, RE59379, RE59997, RE59999, RE60069, RE70995, SE500268 |
| Description | Construction Equipment Tractor 350 |
| CHRA | 446311-0006 (446311-5006S)(3990315002) |
| CZ Part Number | 6665WBS3-12-11X, 6665WBS3-12-11XSD, 6665WBS3/12.11X, 6665WBS3/12.11XSD, 6665WBS31211X, 6665WBS31211XSD, C15-034-01, C15-034-02, C15-034-03, C15-034-04, C15-034-05, C1503401, C1503402, C1503403, C1503404, C1503405 |
| Engine | 4045T Powertech |
| Turbo Model | T300-08, T30008, T4045T |
| Displacement | 4.5L, 4500 ccm, 4 Cylinders |
| Telescopic Handler | 3200, 3400 |
| KW | 126 |
| Fuel | Diesel |
| Angle α (compressor housing) | 336º |
| Angle β (turbine housing) | 0° |
| Bearing Housing | 430027-0020 (407285-0034)(Oil Cooled)(1900011197O) |
| Turbine Wheel | 445812-0001 (Ind. 54.5 mm, Exd. 61.55 mm, Trm 79, 10 Blades)(1100016532) |
| Comp. Wheel | 446340-0003 (Ind. 41.75 mm, Exd. 63. mm, Trm 44, 5+5(6+6) Blades, Superback)(1200016743, 1200016561) |
| Back plate | 409629-0012 |
| Heat shield | 409627-0001 (409627-0000, 103121-0000)(1100030340) |
| Repair Kit | 468139-0000 (1100030750, 5000010041)(Dynamic) |
| Turbine Housing | 447467-0023 |
| Compressor Cover | 446341-0003 |
| Turbine Housing AR | 0.81 |
| Gasket (turbine inlet) | 407294-0001 (310694, T30820, 312617) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Gasket Kit | 318418 (3534516, 3545576, 403240, 22505129)(2090505081) |
| Manufacturer | Honeywell-Garrett |
John Deere

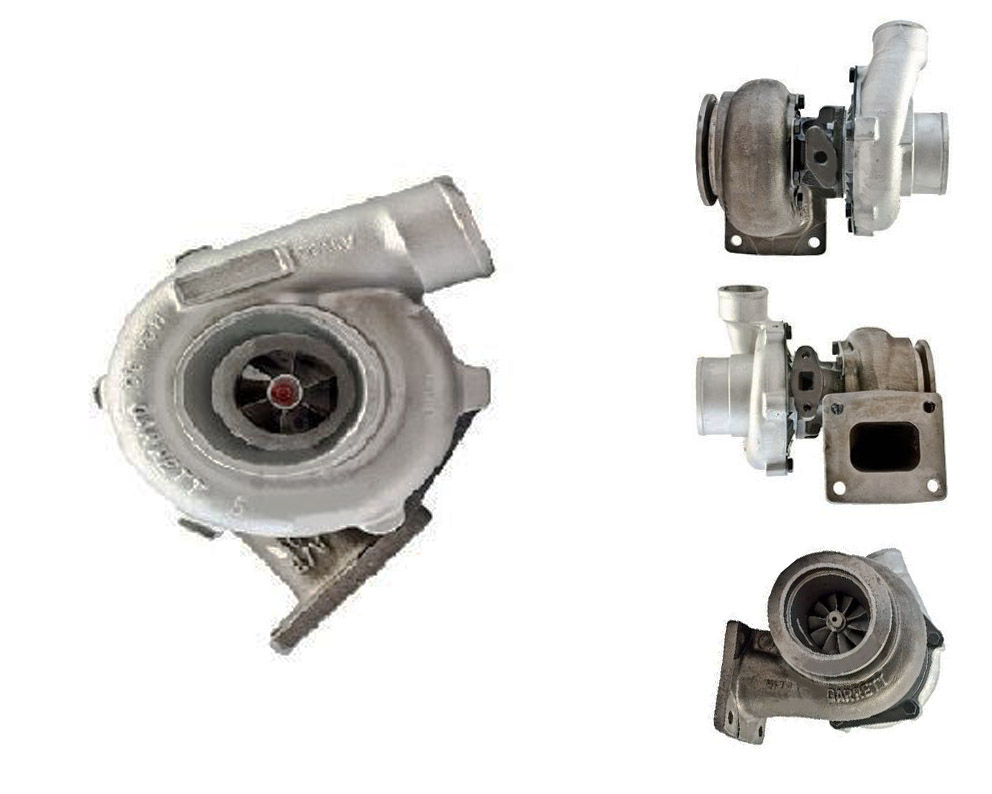

John Deere Agricultural SUPART T300-08 Turbo 471049-0002
Applications
1996- John Deere Agricultural Tractor 350 with 4045T Engine
