| Part Number | 466704-5213S |
| Previous Version | 466704-0213, 466704-213, 4667040213 |
| OE number | 5222818210, 6151828500, 6151-82-8500, 6151818500, 6151-81-8500, 6151828500, 6151-82-8500 |
| Description | Komatsu D85 Offway, D65EX-12E Offway, Construction |
| CHRA | 447450-0081 (447450-5081S, 447450-0022) |
| Turbo Model | T04E08 |
| Engine | S6D125, S6D95 |
| Model | D85 |
| Displacement | 11.0L, 1100 ccm, 6 Cylinders |
| Engine Manufacturer | Komatsu PC300 |
| Fuel | Diesel |
| Angle a (compressor housing) | 172º |
| Angle ß (turbine housing) | 0º |
| Bearing Housing | 430027-0058 (430027-0038)(ME044066, 318137)(Oil Cooled)(1900011057) |
| Turbine Wheel | 446905-0002 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004, 155-5236)(Ind. 73.99 mm, Exd. 64.61 mm, Trm 10.79, 11 Blades)(1100016090) |
| Comp. Wheel | 442476-0019 (Ind. 58.01 mm, Exd. 74.99 mm, Trm 4.96, 6+6 Blades, Superback) |
| Back plate | 408045-0040 (408045-0031, 408045-0030, 408045-0038, 408045-0039) |
| Heat shield Number | 409299-0001 (409299-0000)(ME078199)(311943, 7N0012, 3524773B) |
| Repair Kit | 468265-0000 (468265-0000UK, 3545831)(5000010041) |
| Turbine Housing | 410401-0039 |
| Compressor Cover | 443219-0305 |
| Turbine Housing AR | 1.52 |
| Gasket (turbine inlet) | 407294-0001 (310694) |
| Gasket oil inlet | 210023 (409026-0001, 409036-0000, 409266-0001, 210023-0000, 3519762, 3500681, 3709737, 3755739, 55739, 147837)(1900000037) |
| Gasket (oil outlet) | 210021 (409037-0000, 413671-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) |
| Gasket Kit | 318418 (2505129, 3534516, 3545576, 4032402) |
| Manufacturer | Honeywell-Garrett |
Komatsu

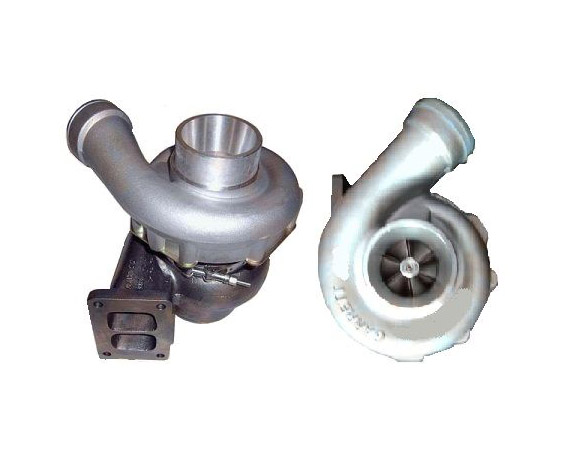

Komatsu Earth Moving, D65EX-12E Offway SUPART T04E08 Turbo 466704-0213
Applications
Komatsu D85 Offway , Earth Moving With S6D95/S6D125 Engine
Komatsu D65EX-12E Offway, Earth Moving With S6D95/S6D125 Engine
