| Part Number | 315650 |
| Previous Part Number | 314195, 315616 |
| OE Number | 6152828410, 6152828210 6152-82-8410, 6152-82-8210, 6152-828410 |
| Year | 1994-03 |
| Description | Komatsu Excavator, PC400, HD205-5 |
| Manufacturer Part Number | 314195, 315616 |
| Turbo Model | S3A, S3A/91H36AEBL/1.55CF6 |
| CHRA | 314473 (SP314473)(1000070106) $400.00 NEW IN STOCK, MADE IN USA |
| Engine | SA6D125/E, SA6D125E-2A-50, SA6D125E-2A-57, SA6D125E-2A-7, SA6D125E-2A-C, SA6D125E-2A-C, SA6D125E-2A-C7, SA6D125E-2A, SA6D125E-2C-L, SA6D125E-2C-L7, SA6D125E-2C-TA |
| Displacement | 11.0L, 11000 ccm, 6 Cylinders |
| KW | 238/324 |
| Fuel | Diesel |
| S/N | 60721-UP |
| Angle α (compressor housing) | 215º |
| Angle β (turbine housing) | 30° |
| Bearing Housing | 313607 (312772, 169457)(SP313607)(Oil Cooled)(1900011340E, 303050001) |
| Turbine Wheel | 314613 (Ind. 83.51 mm, Exd. 73.3 mm, 10 Blades)(1100016553) |
| Comp. Wheel | 314554 (SP314554)(Ind. 63.3 mm, Exd. 91.5 mm, 7+7 Blades)(1200016768) |
| Back plate | 199646 (316010)(304030001) |
| Heat shield Number | 197394 (7C9531)(306010005)(1253400300) |
| Repair Kit | 318392 (1252103757) |
| Turbine Housing | 314555 (SP314555) |
| Compressor Cover | 314262 (SP314262) |
| Gasket (turbine inlet) | 6151115710 |
| Gasket (oil outlet) | 61515187213 |
| NOTE | Also for 275 KW at 2200 RPM |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Komatsu

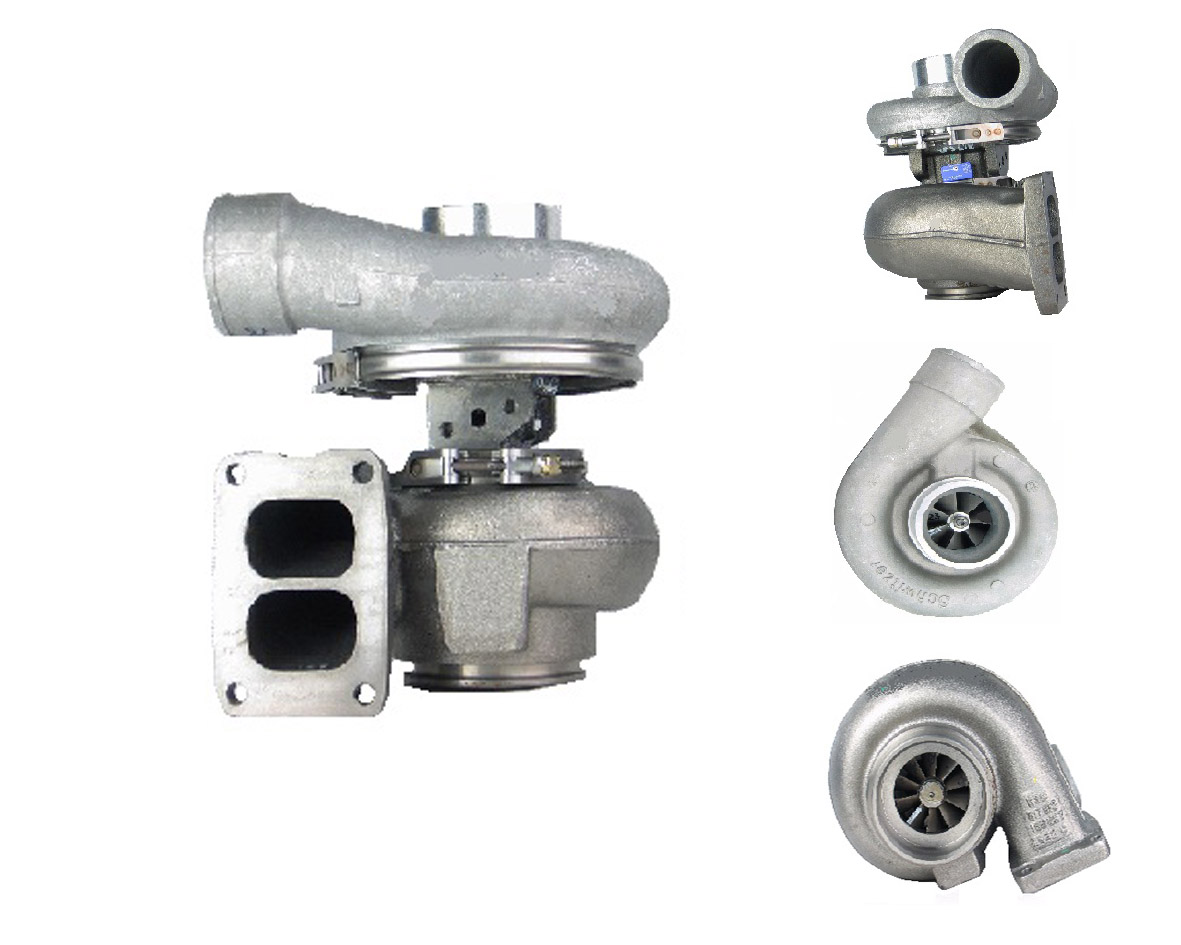

Komatsu Excavator PC400 Earth Moving SUPART S3A Turbo 315650
Applications
1994-03 Komatsu Earth Moving Excavator PC400 with SA6D125 Engine
1996-02 Komatsu Industrial HD205-5 with with SA6D125/E Engine
