| Part Number | 49377-01531 |
| Previous Version | 4937701531, 49377-01530, 4937701530, 4937701531, 49377-01590, 49377-01532 |
| OE Number | 3800882, 6205-81-8232, 6205818232, 6205-81-8231, 6205818231, 6205-81-8290 |
| Description | Onan, Komatsu Construction, Truck |
| Turbo Model | TD04L-10T-7.0, TD04L-10T |
| CHRA | 49177-08500 (4917708500, 49177-08501, 49177-08505)(1401404948) |
| Engine Manufacturer | Komatsu |
| Engine | S4D95L |
| Displacement | 3.3L, 3300 ccm |
| Fuel | Diesel |
| Bearing Housing | 49177-25100 (49135-25100)(Oil Cooled)(1401404450, 1900011152) |
| Turbine Wheel | 49177-30300 (49177-30320)(Ind. 47.19 mm, Exd. 41.22 mm, Trm 7.39, 12 Blades)(1401404437, 1100030029) |
| Comp. Wheel | 49177-44200 (Ind. 35.5 mm, Exd. 48.99 mm, Trm 6.32, 6+6 Blades, Superback) |
| Back plate, Seal plate | 49135-00044 (49135-15405)(1800016016) |
| Heat shield Number | 49170-19100 |
| Repair Kit | 49177-80410 (1401404755) |
| Gasket (oil outlet) | 210243 (Paper) |
| Gasket (turbine inlet) | 210633 (Inox Steel) |
| Manufacturer | Mitsubishi |
Komatsu

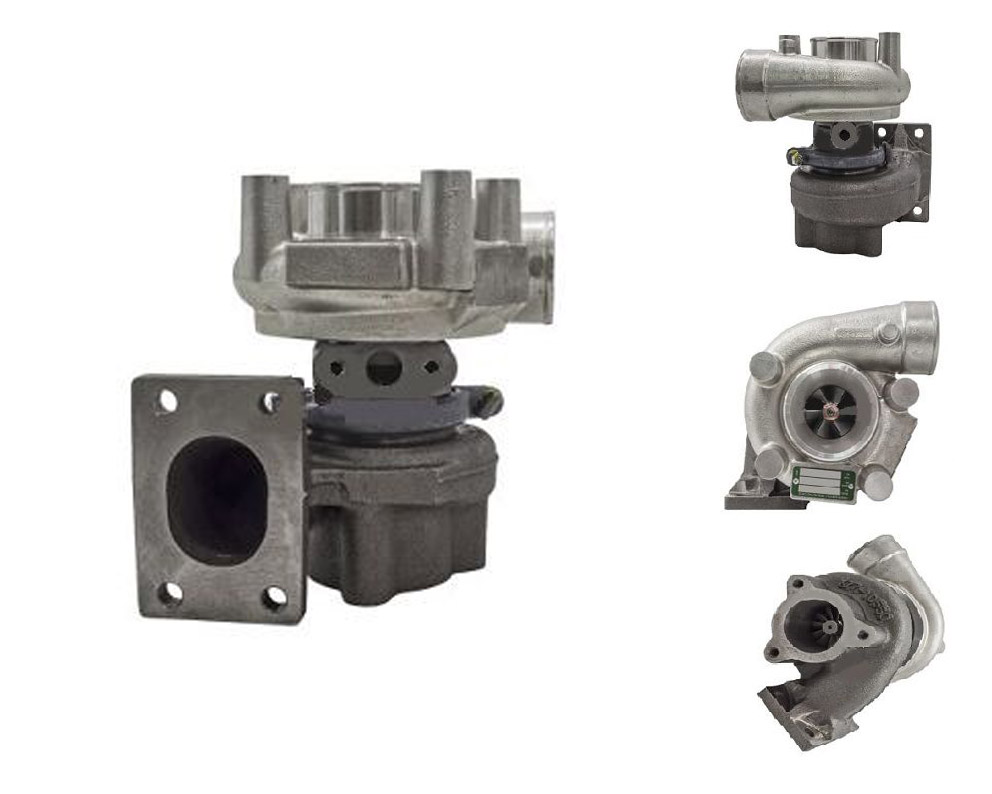

Komatsu, Onan Construction, Truck SUPART TD04L-10T Turbo 49377-01531
Applications
Komatsu Construction, Truck Engine S4D95L
