| Part Number | 3539803 |
| Previous Version | 3539846H |
| OE number | 6732818052, 6732818102, 3804963, 6732-81-8052, 6732-81-8102, 3590022, 3539846 |
| Application | KOMATSU 4BT, PC120-6 |
| Year | 1997- |
| Description | Various Industrial |
| Manufacturer Part Number | 3539846, 3590022 |
| CHRA | 4027483 (3580573) $690.00 |
| Turbo Model | HX30-Q6819A/B08JX33N, HX30 |
| Displacement | 3.9L, 3900 ccm |
| KW | 110 |
| Engine Model | 4BT-110, S4D102, S40102-4BT110 |
| Engine Manufacturer | Cummins |
| Angle α (compressor housing) | 201/340° |
| Angle β (turbine housing) | 20/360° |
| Bearing Housing | 3539898 (4030801) |
| Turbine Wheel | 3539805 (Ind. 40.1 mm, Exd. 67.97 mm, 12 Blades)(1153035436) |
| Comp. Wheel | 3592013 (Ind. 44. mm, Exd. 73. mm, Trm 36, 6+6 Blades, Superback) |
| Back plate | 3530923 (1154351300) |
| Heat shield Number | 3519302 (3519304)(1152301340) |
| Repair Kit | 3575205 (4027485)(1153030750) |
| Turbine Housing | 3536890 |
| Compressor Cover | 3539806 |
| Gasket (turbine inlet) | 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) |
| Gasket (oil outlet) | 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) |
| Gasket (oil inlet) | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket Kit | 3545575 (1900100057) |
| Replaced by | 3590022 |
| Manufacturer | HOLSET |
Komatsu

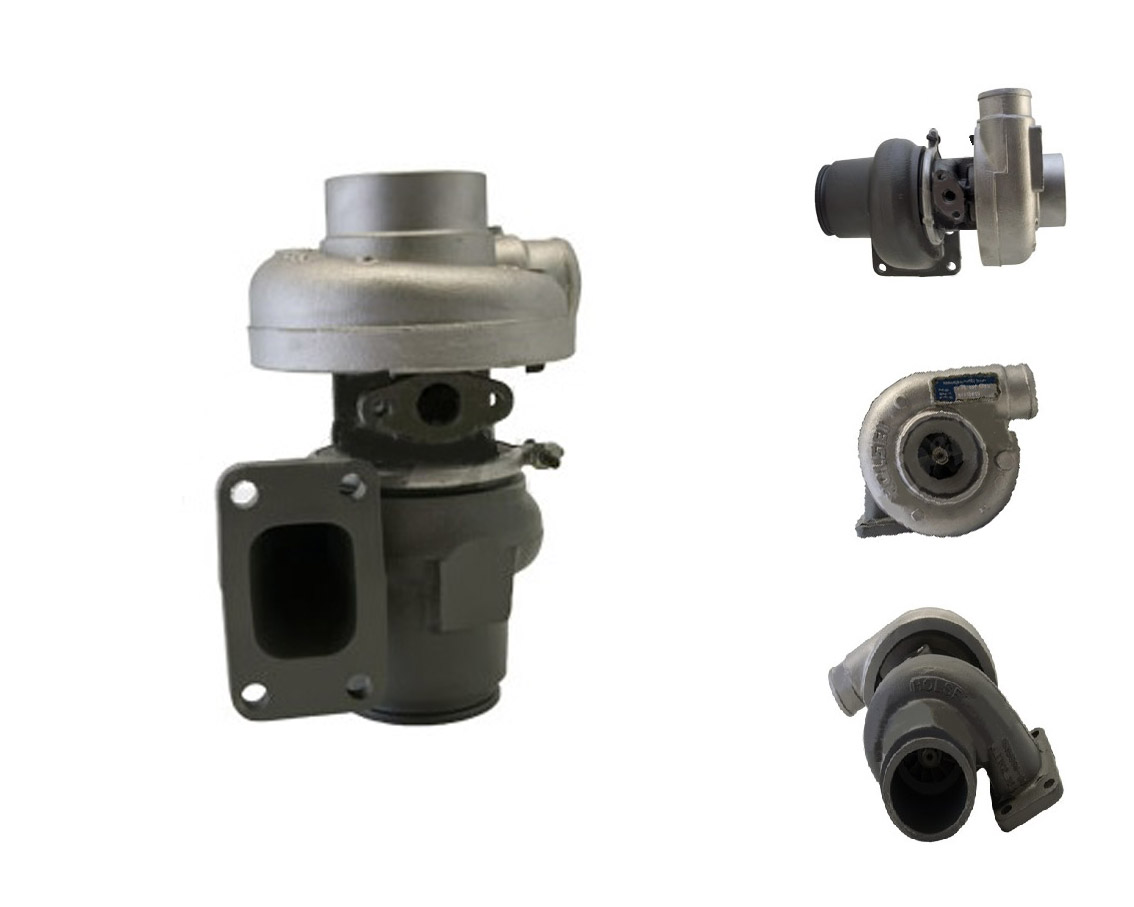

Komatsu Various SUPART HX30 Turbo 3539803
Applications
1997- Komatsu Industrial, Various with 4BT-110, S4D102 Engine
