| Part Number | 49177-03230 |
| Previous Version | 49177-03231, 49177-03232, 49177-03240, 49177-03241, 49177-03242, 49177-03243 |
| OEM Part Number | 1J770-17010, 1J770-17011, 1J770-17012, 1J77017010, 1J77017011, 1J77017012, 1J773-17010, 1J773-17011, 1J773-17012, 1J773-17013, 1J773-17014, 1J77317010, 1J77317011, 1J77317012, 1J77317013, 1J77317014, 436-1920, 4361920 |
| Models | V3307 |
| Description | Kubota Construction Various Industrial, Tractor, Earth Moving |
| CHRA | 49177-08471 (4917708472) |
| Turbo Model | TD04L4, TD04L4-09TK3-5.0 |
| Displacement | 3.3L, 3300 ccm, 4 Cylinders Inline |
| KW | 73/85/114 HP |
| RPM Max | 3000 |
| Fuel | Diesel, Naturally Aspirated |
| Engine Model | V3307-DI-TE3-Q, V3307-DI-T-E3B, Stage3B (Tier 4) |
| Bearing Housing | 49177-25100 (Oil Cooled) |
| Turbine Wheel | (Ind. 47.21 mm, Exd. 41.22 mm, 11 Blades) |
| Compressor Wheel | (Ind. 49. mm, Exd. 34.75 mm, 6+6 Blades, Superback) |
| Back plate | 49135-00044 (Superback)(1401635300) |
| Heat shield Number | 49170-19100 (1401404340) |
| Repair Kit | 49177-80410 (1401404755) |
| Actuator | 49477-18700 |
| Gasket Kit | |
| Manufacturer | Mitsubishi |
Kubota

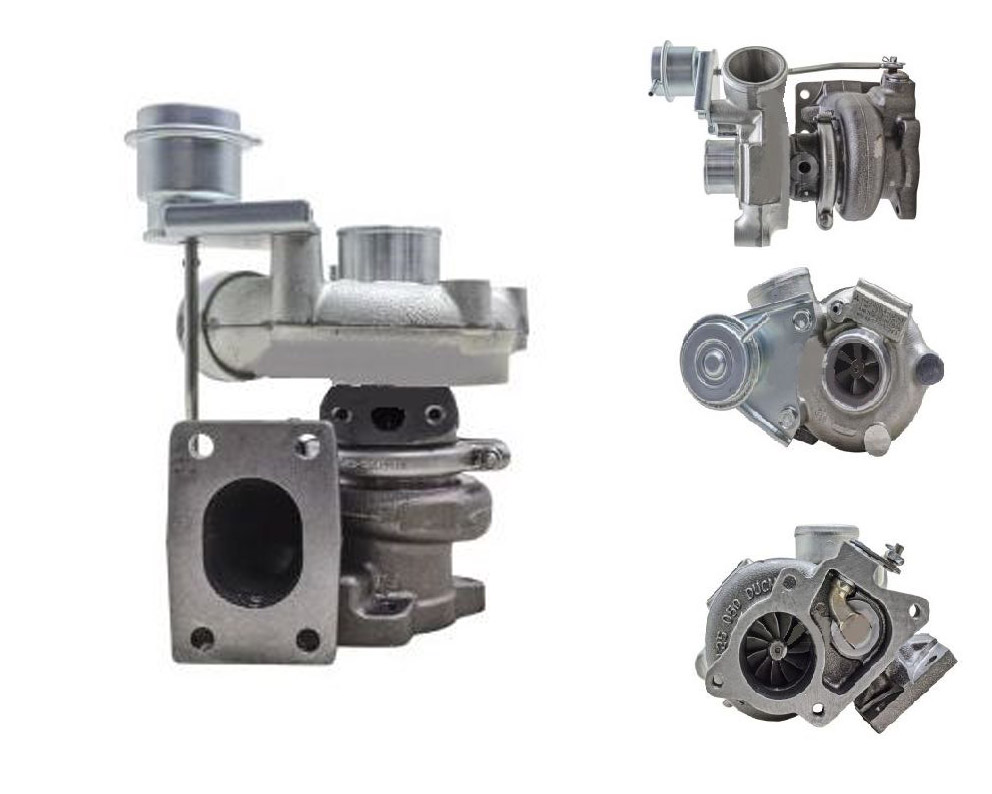

Kubota Industrial Tractor SUPART TD04L4 Turbo 49177-03230
Applications
Kubota Industrial Tractor, Various, Earth Moving with V3307-DI-TE3-Q Engine
