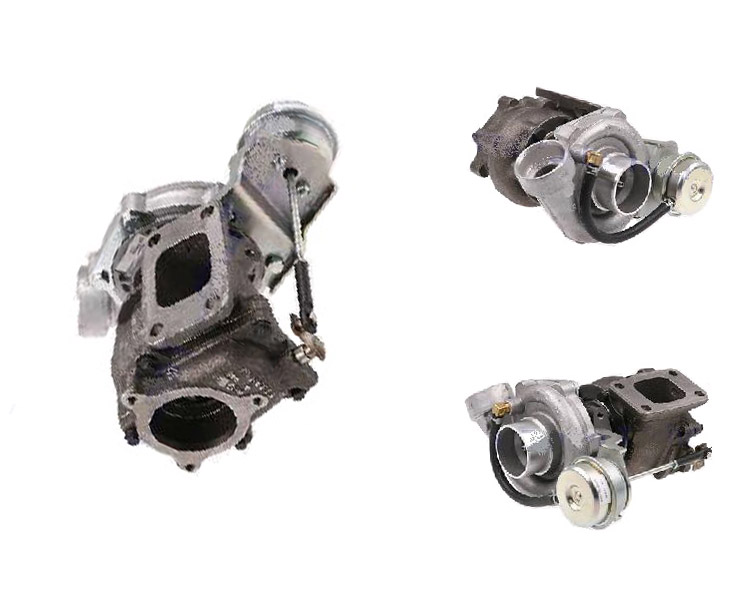

Mercedes Benz Truck SUPART TB0369 Turbo 465285-0003

Mercedes Benz Truck DIESEL (Gelande Wagon) With OM603 Engine

1993-97 Mercedes Benz Truck Diesel 350 G350 With OM603 Engine

1991-97 Mercedes Benz Diesel G-Class 350 TD (W463) With OM603 Engine

Part Number	465285-5003S
Previous Version	465285-0003, 465285-3
OE number	0030963399, A0030963399, 0040966899, A0040966899
Description	Gelande Wagen, Truck, Industrial Vehicles
CHRA	409174-0072 (409174-5072S, 409174-0034, 409174-0057)
Turbo Model	TB0369
Engine Model	OM603.972
Displacement	3.5L, 16, 3449 ccm, 6 Cylinders
Fuel	Diesel
KW	136
Bearing Housing	430027-0022 (312379, 407285-0027, 407285-0038, 407285-0064, 430027-0025, 430027-0048, 430027-0012)(1100030450, 1900011104B)(Oil Cooled)
Turbine Wheel	451311-0014 (451311-0003, 451311-0004, 451311-0013)(1100030435)(Ind. 59.0 mm, Exd. 48.69 mm, Trm 67, 11 Blades)
Comp. Wheel	409096-0014 (103217-0000)(Ind. 42.52 mm, Exd. 60.09 mm, Trm 5, 6+6 Blades, Superback)(1100030402, 1200020109)
Back plate	430108-0004
Heat shield Number	409639-0000 (409627-0000)(103121-0000)
Repair Kit	707897-0001 (200115-0000, 3545830)(1100030750, 5000010041)(Dynamic)
Turbine Housing	431080-0014
Compressor Cover	N/A
Actuator	443700-0009
Turbine Housing AR	0.48
Gasket (turbine inlet)	409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port)
Gasket oil inlet	210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (oil outlet)	210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496)(1900000027) (Paper)
Manufacturer	Honeywell-Garrett
