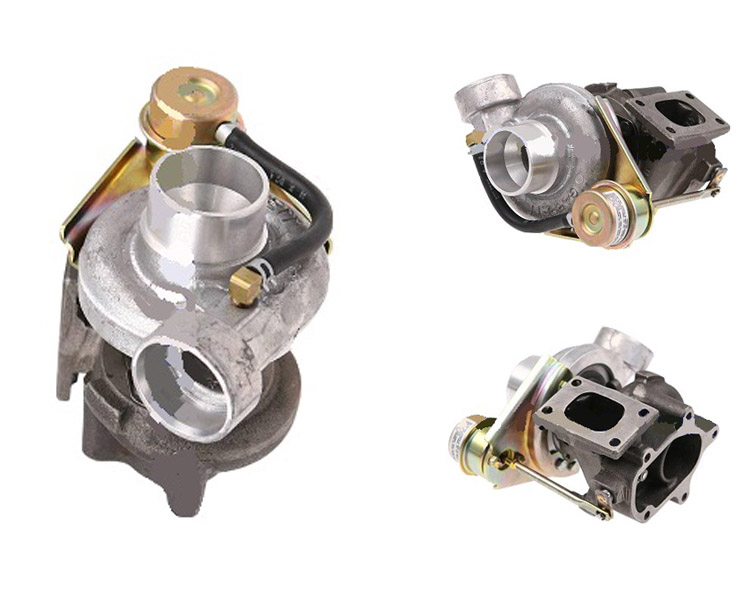

Mercedes Benz Truck TB2510 Turbo 466880-0001

Mercedes Benz Truck SUPART TB2510 Turbo 466880-0001

Applications

1988-93 Mercedes C-Class 190 TD (W201) Engine OM 602.961 5 Cyl

1993-95 Mercedes E-Class 250 TD (W124) Engine OM602 5 Cyl.

Category: Tags: , , , ,
Part Number 466880-5001S
Previous Version 465587-0002,466880-0001, 466880-0003, 466880-1, 53149886704, 466852-0001, 466880-1
OE number 0040966499, A0040966499, 0040966599, 0030960699, 0040962799, 0030960799, A0040966599, A0030960699, A0040962799, A0030960799
Year 1987-95
Description 250 Turbo-D (124.128) (W124),190 (W201), E-CLASS (W124)
CHRA 443854-0002 (443854-5002S)
Turbo Model TB2510, TB2511
Engine OM602A, OM 602.961
Engine Manufacturer Mercedes Benz
Displacement 2.5L, 2497 ccm, 5 Cylinders
KW 126/185
Fuel Diesel
Angle α (compressor housing) 329º
Angle β (turbine housing) 283º
Bearing Housing 432424-0001 (432424-0002)(Oil Cooled)
Turbine Wheel 435257-0005 (435257-0003, 435737-0004)(Ind. 52.8 mm, Exd. 39.32 mm, Trm 5.69, 11 Blades)
Comp. Wheel 431350-0015 (431350-0001, 431350-0007)(Ind. 39.77 mm, Exd. 51.43 mm, Trm 8.73, 6+6 Blades, Superback)(1200020085)
Seal Plate Assy (Carbon) 432280-0001 (430735-0001)(1100025300, 1800016012)
Heat shield Number 431055-0001 (431055-0003, 430871-0002)
Repair Kit 709143-0001 (1100025761)(Dynamic Seal)
Turbine Housing 430609-0081
Compressor Cover 409589-0123 (443801-0010)
Turbine Housing AR 0.49
Actuator 432340-0004
Settings Waste gate (pressure) 0.92-0.99 bar
Settings Waste gate (lifting rod) 0.30 mm
Gasket (turbine inlet) 210218 (Stainless Steel)
Gasket oil inlet 210267 (Paper Gasket)
Gasket (oil outlet) 210268 (Paper Gasket)
Replaced By 465587-0002, 443854-0003, 466880-0003, 53149886704
Manufacturer Honeywell-Garrett
