| Part Number | 49135-03110 |
| Previous Version | 4913503110 |
| OE number | ME202012 |
| Description | Challenger, Pajero |
| CHRA | 49135-08000 (1401635906) |
| Turbo Model | TF035HM, TF035HM-12T |
| Engine | 4M40, 4M40(96-Q-DOM) |
| Engine Manufacturer | Mitsubishi |
| Displacement | 2.8L, 2800 ccm |
| Fuel | Diesel |
| Bearing Housing | 49377-25200 (1401635460, 1401404470) |
| Turbine Wheel | 49135-30100 (Ind. 36.25 mm, Exd. 43.1 mm, 11 Blades) (1401635435, 1100016197) |
| Comp. Wheel | 49135-00016 (Ind. 56. mm, Exd. 43.25 mm, Trm 60, 6+6 Blades)(1401635426, 1200016262) |
| Back plate | 49135-00044 (49135-15405, 49173-22500) (1401635300) |
| Heat shield Number | 49135-19100 (49135-00020)(1401404342, 1401404340) (8 mm Deep) |
| Repair Kit | 49177-80410 (1401404755) |
| Turbine housing | 49135-16190 |
| Actuator | 49377-19350/49377-19380 |
| Turbine Housing AR | 4.0 |
| Gasket (turbine inlet) | 210346 (Stainless Steel) |
| Gasket (turbine outlet) | 210571 (Stainless Steel) |
| Gasket (oil outlet) | 210243 (Gasket Paper) |
| Replaced by | 49135-03130, 49135-03111 |
| Manufacturer | Mitsubishi |
Mitsubishi

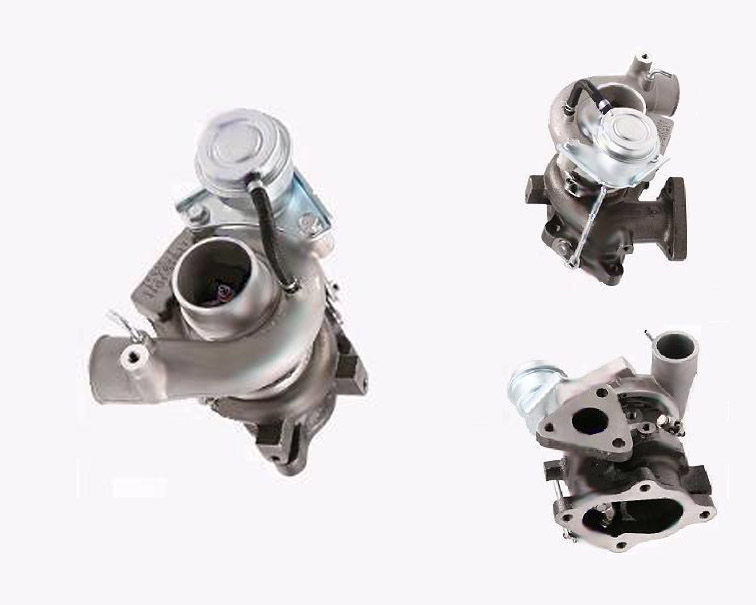

Mitsubishi Challenger SUPART TF035HM Turbo 49135-03110
Applications
1996- Mitsubishi Challenger, Pajero with 4M40 Engine
