| Part Number | 49130-01600 |
| Previous Part Number | 4913001600 |
| OE number | MD188528 |
| Year | 1992- |
| Description | Pajero (mini) |
| CHRA | 49130-08140 (4913008140, 49130-08141, 49130-08100) $520.29 |
| Turbo Model | TD02MR204K2.45, TD02MR2-04K |
| Displacement | 1.6L, 4 CYL. |
| Engine | 4A30 |
| Engine Manufacturer | Mitsubishi |
| Bearing Housing | 49130-26400 (49130-26330)(Water Cooled) |
| Turbine Wheel | (Ind. 26.35 mm, Exd. 34.2 mm, Trm 4, 12 Blades) |
| Comp. Wheel | (Ind. 26.18 mm, Exd. 39. mm, Trm 3.25, 6+6 Blades, Flatback) |
| Back plate | (Superback)(1401402300, 1800016016) |
| Repair Kit | (1401402753) |
| Turbine Housing | 49130-15061 |
| Compressor Cover | 49133-55290 |
| Actuator | 49130-18820 (49130-18810, 49130-18822) |
| Gasket (turbine inlet) | 210670 (Inox Steel) |
| Gasket (turbine outlet) | 210671 (Inox Steel) |
| Gasket (oil outlet) | 210243 (Paper) |
| Gasket (compressor housing inlet) | 210672 (Paper)(1401402795) |
| Replaced By | 49130-01610 (MD613083) |
| Manufacturer | Mitsubishi |
Mitsubishi

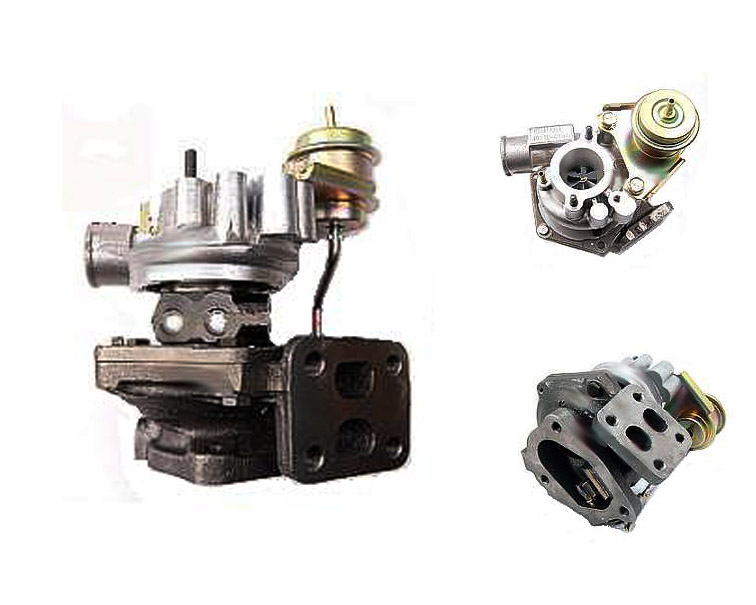

Mitsubishi Pajero SUPART TD02MR2-04K Turbo 49130-01600
Applications
1992- Mitsubishi Pajero Mini with 4A30 Engine
