| Part Number | 465819-5001S |
| Previous Version | 465819-0001, 465819-0003, 465819-1, 465819-3, 465819-5003S, 704944-0001 |
| OE number | 80000172150, 9.0529.20.1.0081, 9.0529.20.1.0081-02, 905292010081, 9052920100810, 9.0529.20.1.0041, 90529201006303, 905292010063, 905292010056, 905292010041, APL709-1, 2R0145061A |
| Description | MWM Volkswagen L80 Truck, Industrial |
| CHRA | 409172-0107 (409172-9107S, 409172-0131, 409179-0144)(1000010370) |
| Turbo Model | TB0392 |
| Engine | 4.10TCA, AGS |
| Fuel | Diesel |
| Displacement | 2.8L, 2799 ccm |
| KW | 103/140 |
| Bearing Housing | 407285-0031 (407285-0059)(Oil Cooled)(1900011256B) |
| Turbine Wheel | 445812-0002 (Ind. 61.49 mm, Exd. 52.19 mm, Trm 10.31, 10 Blades)(1100016056) |
| Comp. Wheel | 446340-0003 (446340-0001)(Ind. 43.66 mm, Exd. 63.06 mm, Trm 6.07, 6+6 Blades, Superback)(1200016242) |
| Back plate | 409629-0019 (409629-0018)(1300016007B) |
| Heat shield Number | 409627-0001 (409299-0001, 103121-0000, 409627-0000)(2030016036) |
| Repair Kit | 707897-0001 (200115-0000, 3545830, 709153-0002)(5000010020) |
| Turbine Housing | 445498-0003 |
| Compressor Cover | 445496-0001 (445496-0008, 400698-0001) |
| Turbine Housing AR | 0.48 |
| Actuator and hose assembly | 445517-0005 (445517-0018)(2061016702) |
| Gasket Kit | (2090010073) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496)(Paper)(1900000027) |
| Manufacturer | Honeywell-Garrett |
Volkswagen

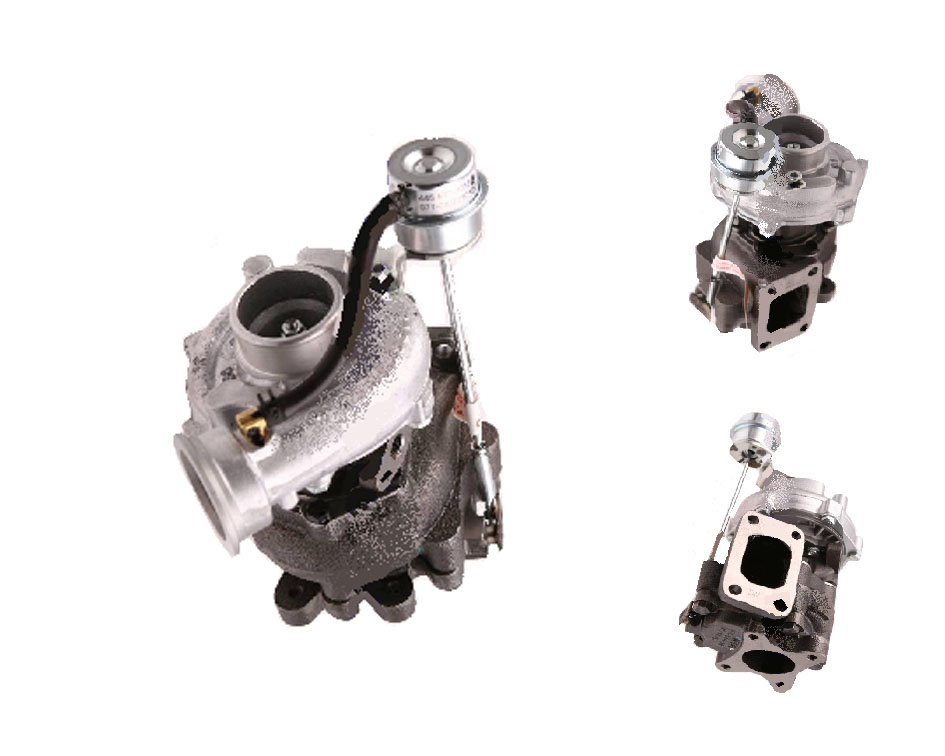

MWM 4.10T Industrial (Volkswagen L80) SUPART TB0392 Turbo 465819-0001
Applications
1995-01 MWM 4.10T Industrial (Volkswagen L80) Engine AGS 4.10TCA
