| Part Number | 466370-5023S |
| Previous Part Number | 466370-0001 to 466370-0021, 466370-0023, 466370-9023, 466370-23, 466370-0021, 466370-22 |
| OE Number | 1441117F01, 14411-17F01, 1441117F60, 14411-17F60 |
| Description | Nissan 200SX, Sylvia, Bluebird, 100ZX |
| CHRA | 431876-0063 (431876-5063S) |
| Turbo Model | TB0210 |
| Displacement | 1.8L, 1800 ccm, 4 Cylinders |
| Engine | CA18ET, CA18DET, L18T |
| Fuel | Gas |
| KW | 135 |
| Angle α (compressor housing) | 181° |
| Angle β (turbine housing) | 164.5° |
| Bearing Housing | 432351-0009 (443941-0001) |
| Turbine Wheel | 435243-0002 (435243-0001, 435243-0002, 435243-0004, 435243-0005, 435258-0005, 435259-0001, 435737-0001, 435737-0006, 443850-0001)(Ind. 35.48 mm, Exd. 47.11 mm, Trm 56, 11 Blades)(101080001, 1100020435) |
| Comp. Wheel | 410450-0014 (Ind. 37.21 mm, Exd. 48. mm, Trm 60, 6+6 Blades, Superback) |
| Back plate | 432280-0001 |
| Heat shield Number | 430871-0002 |
| Repair Kit | 709143-0001 (1100025761) |
| Turbine Housing | 430609-0104 |
| Compressor Cover | 409589-0058 |
| Turbine Housing AR | 0.63 |
| Actuator | 430819-0043 |
| Settings Waste gate (pressure) | 0.430-0.490 Bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (turbine inlet) | 210218 (Stainless Steel) |
| Gasket (turbine outlet) | 210217 (2445284)(Stainless Steel) |
| Replaced by | 466370-5020S, 466370-5023S, 431876-0023 |
| Manufacturer | Honeywell-Garrett |
Nissan

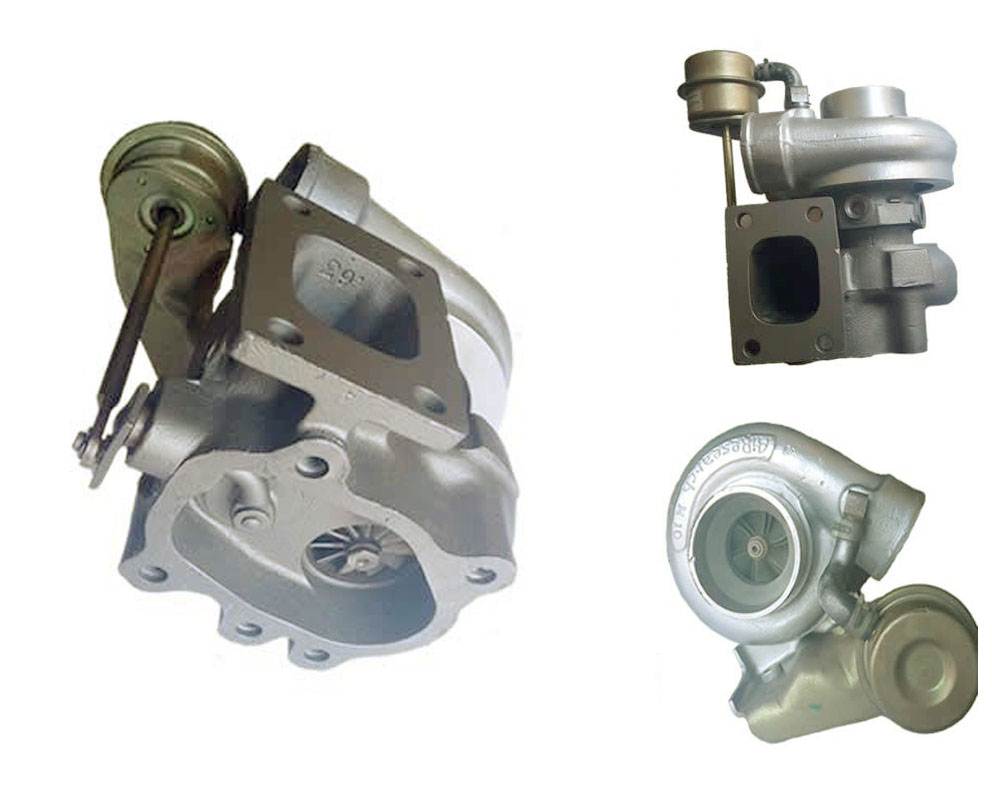

Nissan Silvia , Various TB0210 SUPART Turbo 466370-0023
Applications
1984- Nissan Silvia, Various With CA18ET Engine
