| Part Number | 466541-5001S |
| Previous Version | 466541-0001, 466541-9001, 466541-0004, 466541-1, 466541-4, 836023-0004, 836023-5003S |
| OE number | 14411-69F00, 1441169F00, 1441191F00 |
| Description | Skyline GT-R Only tuning Ball Bearing Performance only |
| CHRA | 446179-0012 (446179-5012S, 446179-0038) $680.44 |
| Turbo Model | TB2808R, GT2560R, GT2576LR |
| Engine Manufacturer | Nissan |
| Engine | RB20DET |
| Displacement | 2.0L, 2000 ccm, 4 Cylinders |
| Fuel | Gas |
| KW | 330 HP |
| Angle α (compressor housing) | 193º |
| Angle β (turbine housing) | 195º |
| Bearing Housing | 467853-0013 (Water Cooled) |
| Turbine Wheel | 435813-0001 (Ind. 53. mm, Exd. 41.73 mm, Trm 62, 11 Blades) |
| Compressor wheel | 445436-0010 (445436-0001)(Ind. 46.45 mm, Exd. 60.09 mm, Trm 60, 6+6(7+7) Blades, Superback) |
| Back plate | 448655-0003 |
| Heat shield Number | N/A |
| Repair Kit | 705731-0001 |
| Turbine Housing | 430609-0203 (449010-0001, 449011-0005) |
| Compressor Cover | 467937-0001 |
| Gasket (turbine inlet) | 2894079 $65.12 |
| Turbine Housing | 430609-0203 |
| Compressor Cover | 467937-0002 |
| Actuator | 448734-0005 |
| Turbine Housing AR | 0.64 |
| Gasket (turbine inlet) | 210218 (Stainless Steel) |
| Gasket (turbine outlet) | 210649 (210399) (Inox Steel) |
| Fitting oil inlet | 431863-0006 |
| Gasket (oil outlet) | 210399 |
| Gasket (turbine inlet) (compressor housing) | 709375-0001 (Paper) |
| Gasket (turbine outlet) (compressor housing) | 210343 (Inox Steel) |
| Manufacturer | Honeywell-Garrett |
Nissan

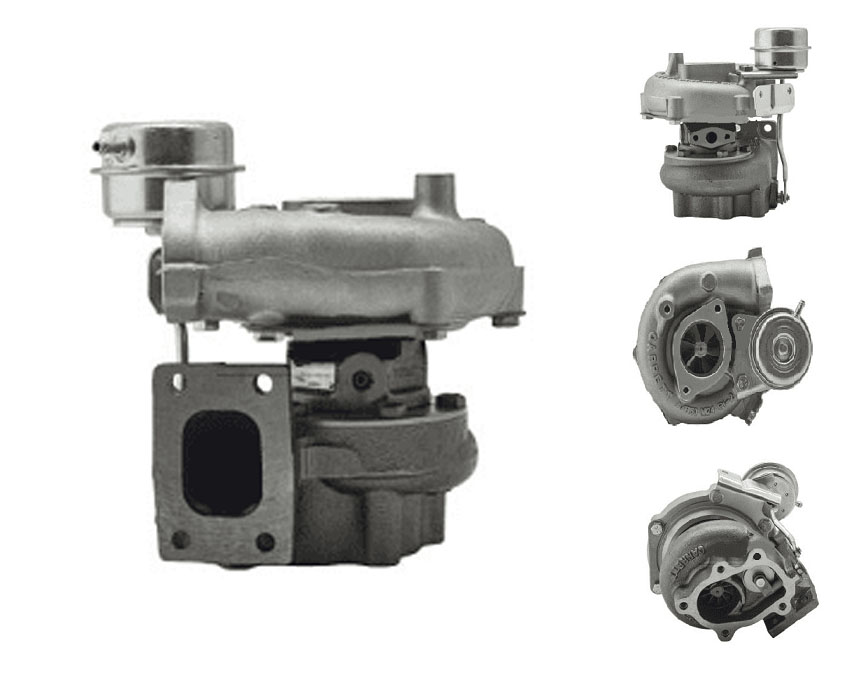

Nissan Skyline GT-R TB2808R, GT2560R SUPART Turbo 466541-0001
Applications
1995- Nissan Skyline GT-R With SR20DET Engine
Tuning Upgrade 200-330 HP 1.6L-2.5L
