| Part Number | 409080-5009S |
| Previous Version | 409080-5009S, 409080-0001, 409080-0002, 409080-0003, 409080-0009, 409080-9 |
| OE number | 4036393, 4036392, 4029144, 4029145, 4029146, 4036394, 4036391 |
| Description | HWY Truck, Earth Moving, Off HWY Agricultural Combine Tractor HD7645 |
| CHRA | 408105-0150 (408105-5150S, 408105-0010, 310340)(4062115) |
| Turbo Model | T04B90 |
| Models | 7030, 7040, 7045, 8030, 8050, 8070 |
| Engine | 670T, 670I, 3500, 3700, 3750 |
| Fuel | Diesel |
| Displacement | 7.0L, 7000 ccm, |
| Bearing Housing | 407285-0039 (311439A, 430027-0021, 311439) |
| Turbine Wheel | 407276-0006 (407276-0007, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0010, 451309-0003, 451309-0004)(5149539)(Ind. 74. mm, Exd. 64.6 mm, Trm P, 11 Blades) |
| Comp. Wheel | 409179-0013 (310260, 74062085)(Ind. 51.6 mm, Exd. 70. mm, Trm T-1,-2, 8+8 Blades) |
| Back plate | 312576 |
| Heat shield Number | 409299-0000 (407565-0000, 409299-0001)(R43804, 3524773B) (311943)(7N0012) |
| Repair Kit | 468100-0000 (1100040750) |
| Turbine Housing | 311982 |
| Compressor Cover | 313105 |
| Turbine Housing AR | 0.96 |
| Replaced By | 409080-0010, 409080-0011, 313099 |
| Manufacturer | Honeywell-Garrett |
Deutz

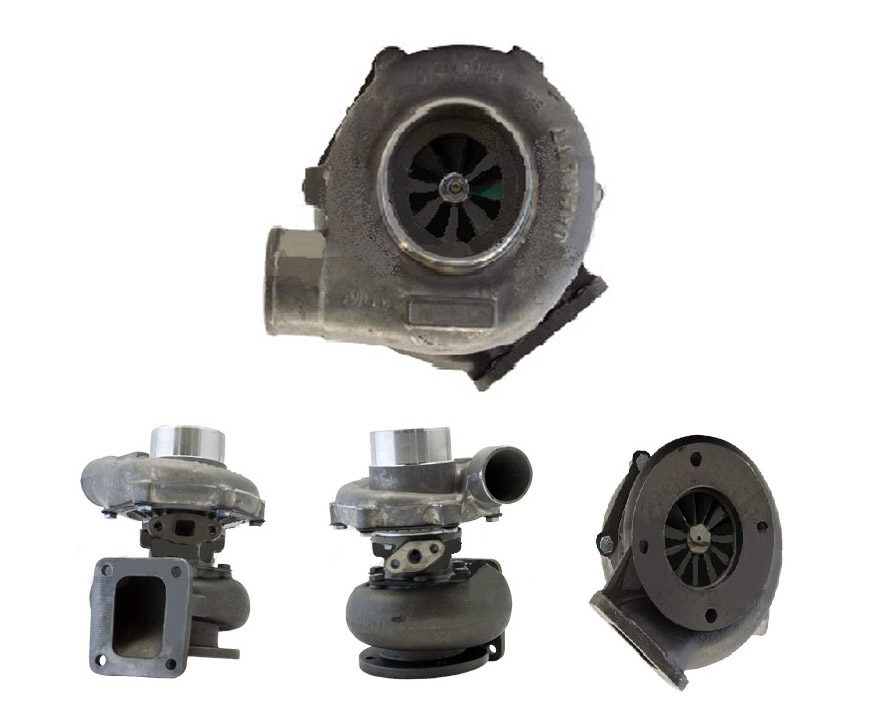

SUPART Allis-Chalmers Agricultural Combine HD7645, Deutz Allis Various T04B90 Turbo 409080-0009
Applications
1973-85 Allis Chalmers Earth Moving HD7645 with 3500 Engine
1973-85 Deutz Truck with with 3500 Engine
