| Part Number | 169593 |
| Previous Version | 167435, 167435R, 168416, 168416R, 168477, 168477R, 168909, 168909R, 169449, 169449R, 169593R, 169820, 169820R, 178078, 178078R, 467435, 478078 |
| OE number | 0R6943, 118-2027, 1182027, 126-5420, 1265420, 127-9332, 1279332, 133-9238, 1339238, 141-9231, 1419231, 145-6094, 1456094, 151-5262, 1515262 |
| Description | Truck, Earth Moving |
| CHRA | 167422 (167422R, 0R6944, 118-2032, 1182032, 178159, 478159) |
| Turbo Model | S200G-001, S200G001 |
| Prefix | 2CW, 8WL, 1WM, 4ES, 6RW, 7LZ, 8HW |
| Displacement | 7.0L, 7000 ccm |
| Engine | 3126 |
| KW | 202/275 |
| Fuel | Diesel |
| Bearing Housing | 167730 (167758)(Oil-Cooled) |
| Turbine Wheel | 167729 (Ind. 69.59 mm, Exd. 60.63 mm, Trm 10.87, 10 Blades) |
| Comp. Wheel | 167731 (Ind. 58.55 mm, Exd. 79.8 mm, Trm 6.4, 7+7 Blades, Superback) |
| Back plate | |
| Heat shield Number | 167745 (2030016117) |
| Repair Kit | 318378 (318382, 315565, 319257, 312956, 313501, 315438)(1252212750, 5000030021) |
| Turbine Housing | 166142 |
| Gasket Kit | 318420 (318420, 2505134, 3545575, 3575687, 3580734, 4027643, 4032401, 4032403, 4032407, 4032438, 4032545, 7C7431) $16.66 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Caterpillar

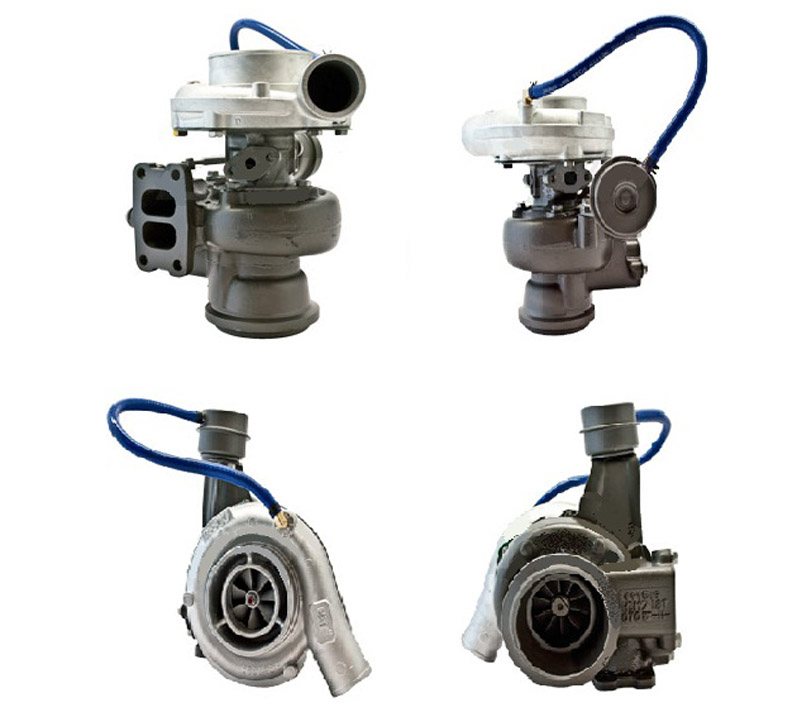

SUPART Caterpillar Earth Moving S200G001 Turbo 169593
Applications
1994-09 Caterpillar Earth Moving with 3126 Engine
