| Part Number | 166808 |
| Previous Version | 166808R, 166809, 166809R, 199279, 199279R, 199713, 199713R |
| OE number | 0R6243, 0R6352, 0R6728, 103-2081, 103-2082, 1032081, 1032082, 1080057R, 4P2760, 6I0171 |
| Description | Earth Moving |
| CHRA | 199280 (178244, 178244R, 199280R, 199716, 199716R, 178259, 478244, 499716, 4P2763)(0R6257, 0R6351, 0R6764, 1061725, 4P2763, 6I0175) |
| Turbo Model | S2EG070 |
| Engine | 3116 |
| KW | 158/215 |
| Bearing Housing | 199719 |
| Turbine Wheel | 167423 (Ind. 69.59 mm, Exd. 60.6 mm, Trm 10.94, 10 Blades)(1100016145B) |
| Comp. Wheel | 166835 (Ind. 55.98 mm, Exd. 81.38 mm, Trm 15.11, 7+7 Blades, Superback)(1200016470) |
| Back plate | 194149 (2030016078) |
| Heat shield Number | 194149 |
| Repair Kit | 318381 (168987, 318379)(5000030122) |
| Gasket Kit | 318420 (1P0451) |
| Actuator | (2061016764) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Caterpillar

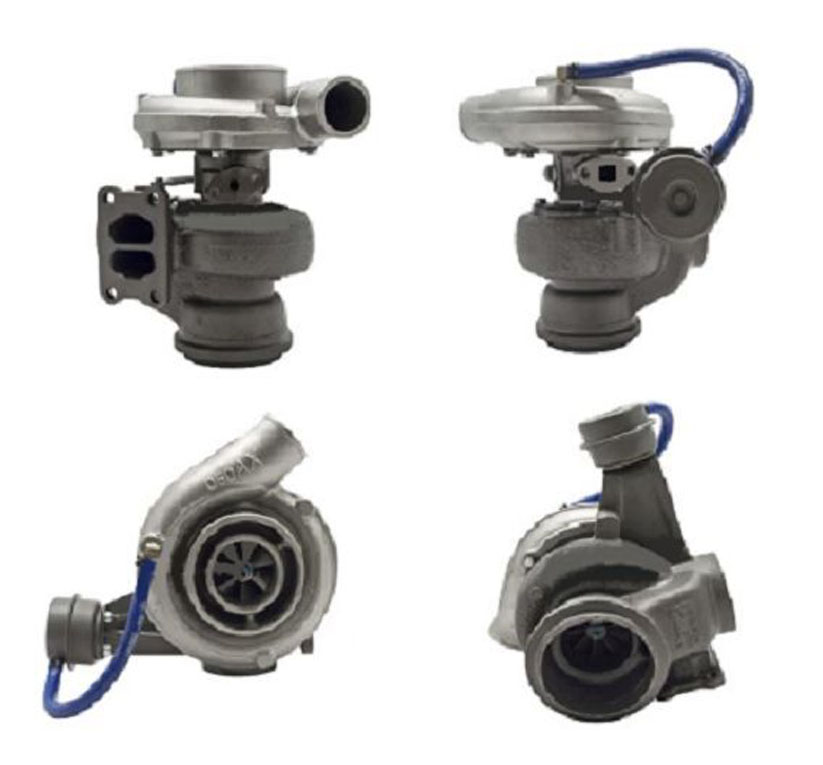

SUPART Caterpillar Earth Moving S2EG070 Turbo 166808
Applications
1993-03 Caterpillar Earth Moving with 3116 Engine
