| Part Number | 170354 |
| Previous Version | 169227, 169227R, 170354, 170354R, 171665, 171665R, 174259, 174259R |
| OE number | 0R6812, 0R6833, 0R6936, 0R6937, 0R6938, 0R6939, 0R6985, 0R6986, 0R6987, 0R6988, 0R7051, 0R7087, 0R7152, 0R7201, 0R7202, 0R7204, 108-1051, 1080227R, 1081051, 110-8465, 1108465, 112-6918, 1126918, 115-7081, 1157081, 116-9581, 116-9582, 116-9584, 116-9585, 1169581, 1169582, 1169584, 1169585, 124-3031, 124-3032, 124-3033, 124-3034, 1243031, 1243032, 1243033, 1243034, 127-4260, 1274260, 131-2427, 1312427, 137-4832, 1374832, 141-8937, 141-8938, 141-8940, 1418937, 1418938, 1418940 |
| Garrett | 466445-0004, 466445-0006, 466445-0008, 466445-0009, 466445-0010, 466445-0011, 466445-0012, 466445-0014, 466445-0015, 466445-0016, 466445-0017, 466445-0020, 466445-0021, 466445-0022, 466445-0024, 471066-0001 |
| Description | Earth Moving |
| CHRA | 170147 (170147R, 174248, 0R7288, 161-9113, Use 178438) |
| New Part Number | 166-6752, 1666752 |
| Reman Part Number | 0R7299 |
| Turbo Model | S410G031 |
| Engine | 3406E Low HP |
| Displacement | 14.64L, 1464 ccm |
| Power | 355/375/435 HP |
| Fuel | Diesel |
| Bearing Housing (water-cooled) | 174246 (Oil-Cooled) |
| Turbine Wheel | 169346 (Ind. 91.46 mm, Exd. 81.66 mm, Trm 14.4, 10 Blades)(1100-016-458) |
| Comp. Wheel | 171691 (Ind. 74.57 mm, Exd. 105.33 mm, Trm 7.97, 7+7 Blades, Superback)(1200016636) |
| Back plate | 167783 |
| Heat shield Number | 167790 (2030016012) |
| Repair Kit | 318396 (318397)(1253400750, 5000030020) |
| Actuator | (2061016172) |
| Replaced by | 177148 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Caterpillar

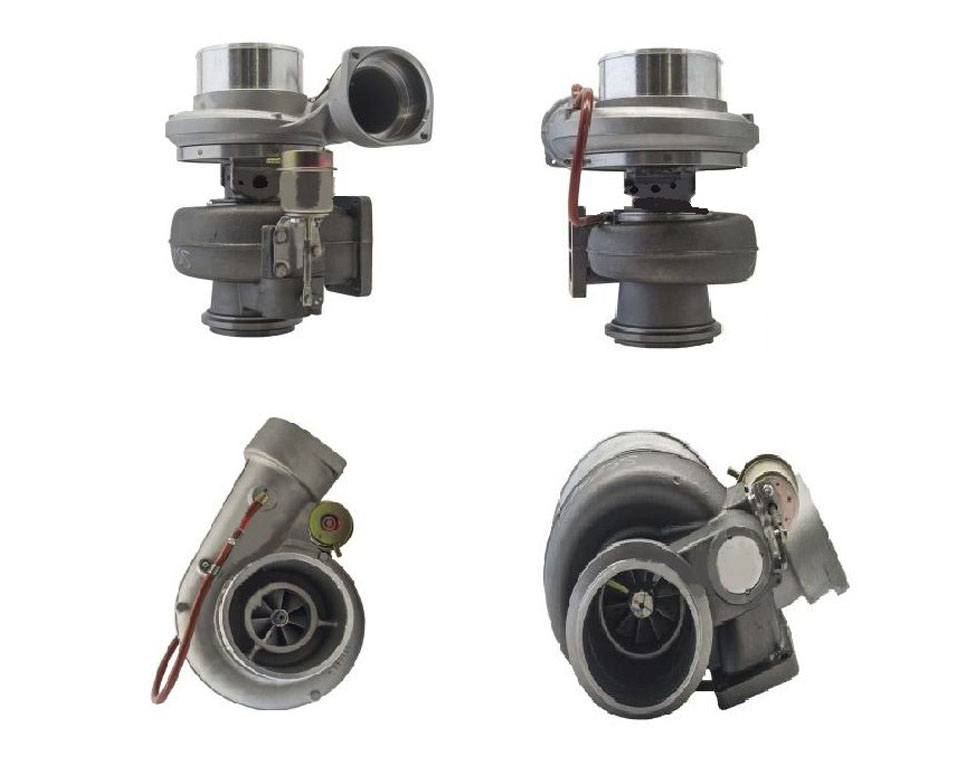

SUPART Caterpillar Earth Moving S410G031 Turbo 170354
Applications
1980-13 Caterpillar Earth Moving with 3406E Low HP Engine
