| Part Number | 49179-02350 |
| Previous Part Number | 4917902350, 49179-02340, 49179-02330, 49179-02360, 49179-02370, 49179-02390 |
| OEM Part Number | 205-6741, 2056741, 222-8219, 2228219, 227-1027, 2271027, 5I-8018, 5I8018, 10R7610, ME2056741 |
| Description | Excavator 320C, Cat 320C Construction |
| CHRA | 49179-08600 (316402)(5I7589, 5I-7589) |
| Turbo Model | TD06H-16M-12.0, TE06H-16M |
| Prefix | EAG, FBA, GAA, GNG, HKT, MAA, MAB, NAE, PAA, PAB, RAW, SAH, SBN, TBR, AZR, BWP, CXY, DFT, DHK, EBT, FNA, JGZ, MDE, CYD, DKW, GRL, GRN, PBM, SDC |
| Engine Model | S6K-T, 320C, 320C, 320D |
| Displacement | 5.6L, 6300 ccm |
| Fuel | Diesel |
| Machine Engine | 3066, C6.4 |
| Excavator | 320C, 320C L, 320D, 320D L, 323D L, 323D LN, 323D S |
| S/N | 7JK1-99999, MAE80482-UP, 7JK55000-UP, 7JK59800-UP, 7JK60000-UP, 7JK60000-UP, 7JK1-UP, PBM00001-UP, EAG00001-UP, CXY00001-UP, CYD00001-UP, SDC00001-UP, GNG00001-UP, RAW00001-UP, SAH00001-UP, MAB00001-UP |
| Bearing Housing | 49179-20300 (49179-25310)(135-2359)(Oil Cooled) |
| Turbine Wheel | 49179-30220 (135-2357)(Ind. 67.31 mm, Exd. 58.75 mm, Trm 10.64, 12 Blades) |
| Comp. Wheel | 49185-40700 (135-2360)(Ind. 48.2 mm, Exd. 68.01 mm, Trm 5.38, 7+7 Blades, Superback) |
| Back plate | 49168-22510 (49178-22500)(197340)(135-2351, 245-5007) |
| Heat shield Number | 49168-18900 (193975)(135-2346) |
| Repair Kit | 49178-81100 (49178-89200)(2455063)(1401405750) |
| Turbine Housing | 49179-17820 (5I8041) |
| Compressor Cover | 443213-0020 (5I7587) |
| Turbine Housing AR | 12.0 |
| Gasket (turbine inlet) | 409039-0000 (210022-0000, 240-5022)(5I7742) |
| Gasket (oil outlet) | 210317 (34336-04100)(5I7689)(Paper) |
| Manufacturer | Mitsubishi |
| Condition | NEW |
Caterpillar

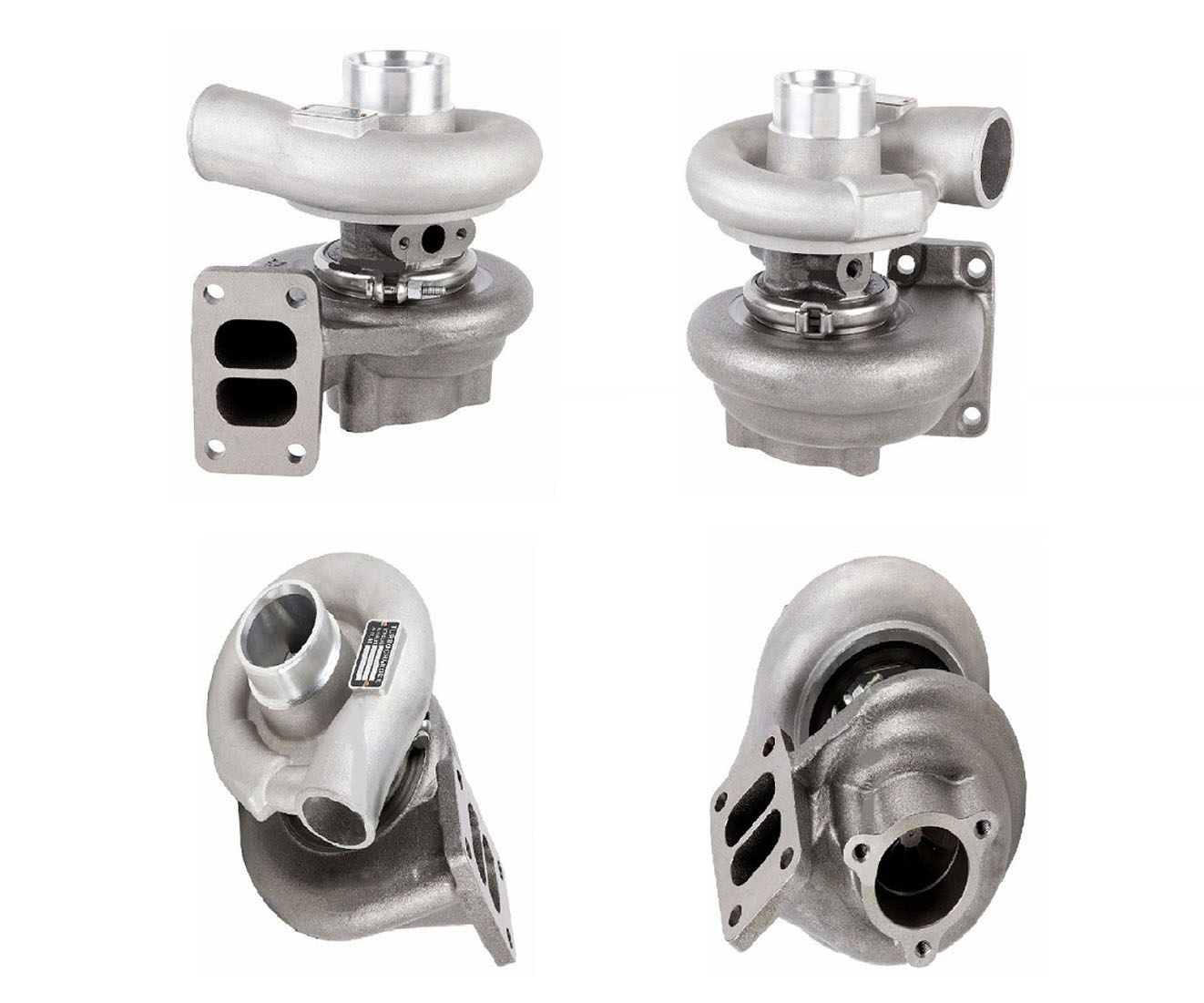

SUPART Caterpillar Excavator 320C TD06H Turbo 49179-02350
Applications
1980-13 Caterpillar Excavator 320C, Earth Moving with 3066 Engine
