| Part Number | 466905-5001S |
| Previous Part Number | 466905-0002, 466905-0001, 466905-2, 466905-1, 465305-5001, 465305-9001, 4653050001, 4653055001, 4653059001 |
| OE number | 7C-6615, 7C6615, 7C-6609, 7C6609 ,10R8241 |
| Description | Industrial Engine |
| Turbo Model | UTV7804 |
| CHRA | 451190-0003 (442480-0012, 442480-0005, 7C6610, 119-8516, 0R5732, 0R6952) |
| Engine Model | 3406 DITAJWAC |
| Articulate Dump Truck | D400D, D40D |
| Prefix | 4MG, 5KJ, 6TB, 7FB, 7T2, 7XC, WJA, 2MZ, 4MG, 5KJ, 6TB, 7FB, 7T2, WJA, 6DD, 1RM, 6ED, 5FK, 2JJ, 8TF |
| Fuel | Diesel |
| Machine Engine | 3406, 3406B, 3406C |
| Industrial Engine | 3406B |
| Road Reclaimer | RM-350; RR-250; SS-250; SM-350 |
| Truck Engine | 3406B; 3406C |
| S/N | 6TB3714-UP, 11N7919-99999 |
| Bearing Housing | 449072-0001 (408495-0009, 408495-0010, 408495-0028)(0R5404, 160025, 9N2035)(Oil-cooled)(1101672450) |
| Turbine Wheel | 451403-0001 (442479-0002)(4W5196)(Ind. 104.87 mm, Exd. 92.81 mm, Trm 15.87, 11 Blades)(1101078435) |
| Comp. Wheel | 451405-0004 (445241-0003)(4W5193, 6I0849) |
| Back plate | 447241-0008 (430108-0004, 408487-0022)(4P8736, 7C6612, RE11590) |
| Heat Shield | 407657-0009 (409794-0002, 407657-0008)(4P6527) |
| Repair Kit | 468267-0010 (468103-0000, 3545824)(1101085750) |
| Turbine Housing | 408804-0104 (442481-0003, 7C6616)(1101078820) |
| Compressor Cover | 409168-0096 (7C6611) |
| Turbine Housing AR | 1.37 |
| Gasket (turbine inlet) | 409038-0000 (132040, 3500683, 205396, 202873, 1S4295, 9749, 210017-0000)(1900000003) |
| Gasket (oil outlet) | 210018 (409267-0002, 201048, 1S4810, 3709738, 3500682, 3519763, 9738, 9988, 210018-0000)(1900000025) |
| Manufacturer | Honeywell-Garrett |
Caterpillar

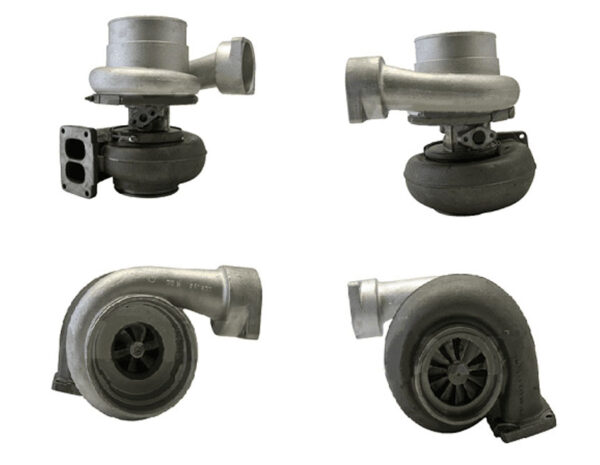

SUPART Caterpillar Industrial UTV7804 Turbo 466905-0001
Applications
1989-90 Caterpillar Industrial with 3406 DITAJWAC Engine
