| Part Number | 169489 |
| Previous Version | 168465, 168465R, 169489R, 169603, 169603R, 170001, 170001R, 179588, 179588R, 468465, 469489, 469603, 470001, 479588 |
| OE number | 0R7122, 0R7212, 10R9769, 127-7077, 1277077, 143-1209, 1431209, 145-8884, 1458884, 157-4386, 1574386 |
| Description | Marine, Industrial, Machine |
| CHRA | 169040 (0R7138, 136-3973, 1363973, 169040R, 178167, 178167R, 478167) |
| Turbo Model | S400W030 |
| Prefix | 1SK, 2WG, 4KG, 4PG, 9ZR, CKK, 4FM, 9BM |
| KW | 350 HP |
| Fuel | Diesel |
| Machine Engine | 3116, 3116TA |
| Industrial Engine | 3116, 3116TA |
| Marine Engine | 3116, 3116TA |
| S/N | 1SK1962-2247, 1SK2248-UP, 4KG8041-9870, 2WG6416-UP, 2WG6230-6415, 4KG6320-6415, 4PG3493-UP, 4PG00001-UP, 1SK00001-UP, 4KG00001-UP, 2WG00001-UP |
| Bearing Housing | 169207 (169233)(Oil Cooled) |
| Turbine Wheel | 169039 (156-0514, 1560514)(Ind. 74.24 mm, Exd. 64.59 mm, Trm 10.7, 11 Blades) |
| Comp. Wheel | 170030 (169205) |
| Back plate | 167543 (1253300300) |
| Heat shield Number | 167550 (3519302)(1649415)(1152301340, 2030016087) |
| Repair Kit | 318394 (169636, 169032)(1253300750, 5000030018) |
| Turbine Housing (Water-Cooled) | 169389 (1277079) |
| Compressor Cover | 169495 (1432614) |
| Gasket (turbine inlet) | 4P7704 |
| Plug-Cup | 4K0149 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS-USA |
Caterpillar

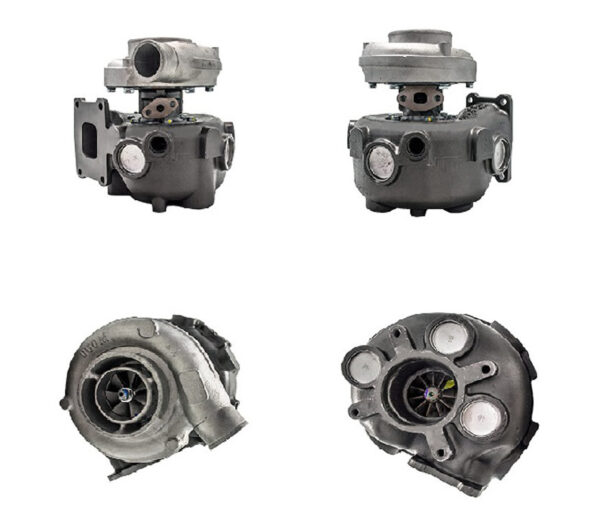

SUPART Caterpillar Marine S400W030 Turbo 169489
Applications
1997-12 Caterpillar Marine with 3116 Engine
