| Part Number | 196557 |
| OE number | 0R5721, 7C7587 |
| Description | Truck Engine |
| CHRA | 196540 (0R5723, 7C7601, 6I1697, 178224, 312736) |
| Manufacturer Part Number | 169490, 312637, 178107 |
| Turbo Model | S4DS014, S4DS 014 S4DS |
| Truck Engine | 3306, 3306B |
| S/N | 63Z3057-22741, 63Z22742-UP, 63Z00001-22741 |
| Fuel | Diesel |
| Bearing Housing | 196661 (194031)(199144, 196534, 7C7611, 4P3627, 7C0067)(Oil Cooled) |
| Turbine Wheel | 191609 (7W8844)(Ind. 72. mm, Exd. 83.43 mm, 10 Blades) |
| Comp. Wheel | 194312 (194634)(7C0639, 7W8845)(Ind. 58.94 mm, Exd. 86.40 mm, Trm 10.66, 6+6 Blades) |
| Back plate | 197651 (51135, 142066, 5S4556, 52321523000, 52321523001, 49162-22500, 1250403300, 143044-0000) |
| Heat shield Number | 187517 (4W7355) |
| Repair Kit | 318405 (318408, 166047, 318409)(1252419750) |
| Turbine Housing | 194916 (7C3375) |
| Compressor Cover | 194634 (7C0639) |
| Gasket (turbine inlet) | 409038-0000 (9749, 1S4295, 202873, 205396, 3500683, 132040, 210017-0000)(1900000003) |
| Gasket oil inlet | 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) |
| Gasket (oil outlet) | 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Caterpillar

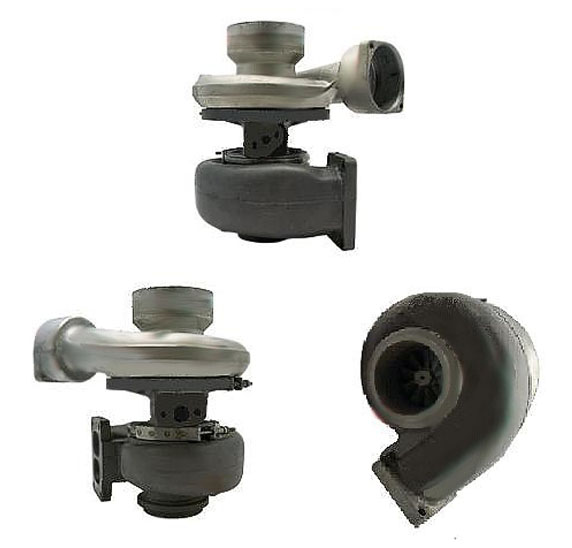

SUPART Caterpillar Truck Engine S4DS Turbo 196557
Applications
1986-12 Caterpillar Truck Engine with 3306B Engine
