| Part Number | 178477 |
| Previous Version | 169510R, 169568, 169568R, 172314, 172314R, 172347, 172347R, 169510, 178477R, 469510, 469568, 472314, 472347, 478477 |
| OE Number | 0R7216, 1080043R, 10R0183, 144-0816, 1440816, 145-5183, 1455183, 204-6489, 204-6490, 2046489, 2046490 |
| Year | 1996-06 |
| Description | Truck |
| Turbo Model | S310S026 |
| CHRA | 169516 (0R7217, 2095384, 10R0472, 1440817, 144-0817, 169516R, 178173, 469516, 478173) |
| Prefix | 3CS, 8YS, MBJ, 4CR, BFT, 8AR |
| Engine Model | C10, 98 C10, 3412C, 3412E |
| Engine Manufacturer | Caterpillar |
| KW | 246/335 hp |
| Replaces Part Number | 172314, 172347 |
| RPM | 1800 |
| Displacement | 10.0L, 10000 ccm |
| Fuel | Diesel |
| Truck Engine | C-10 |
| S/N | 3CS23768-UP, 8YS7760-UP |
| Bearing Housing | 169576 (Oil Cooled) |
| Turbine Wheel | 169514 (Ind. 73.68 mm, Exd. 79.8 mm, Trm 12.7, 10 Blades) |
| Comp. Wheel | 169511 (171579)(Ind. 60. mm, Exd. 88. mm, 7+7 Blades, Superback) |
| Back plate | 167543 |
| Heat shield Number | 167550 (2030016087) |
| Repair Kit | 318394 (318393, 315431, 169032, 169636)(1253300750, 5000030018) |
| Turbine Housing | 169095 (1371601) |
| Compressor Cover | 169512 (1440818) |
| Gasket (turbine inlet) | 409038-0001 (210835-0000, 9749, 7M7273) |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Caterpillar

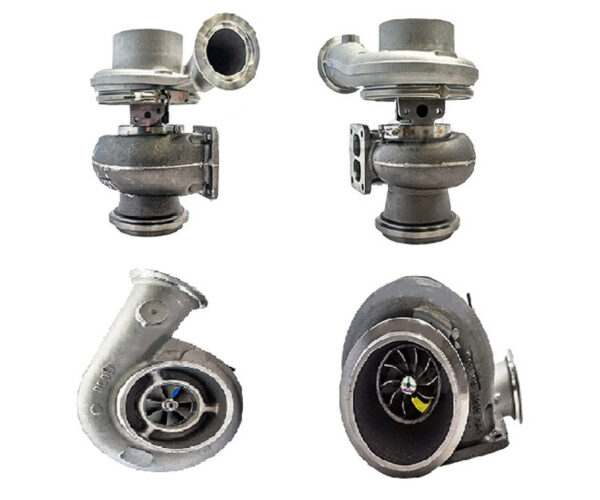

SUPART Caterpillar Truck S310S086 Turbo 178477
Applications
1996-06 Caterpillar Truck with C10 Engine
