| Part Number | 174269 |
| OE number | 6I4574, 116-9574, 124-3030, 141-8936, 0R6694, 0R6935, 0R6984, 0R7200, 160-5550, 0R7284, 0R7200, 136-7619, 0R7142 |
| Year | 1996-07 |
| Description | Various |
| Manufacturer Part Number | 466423-0004 |
| CHRA | 174248 (451686-0006, 169062) |
| Turbo Model | S410, S410S019 |
| Engine | 3406E, C15 |
| Engine Manufacturer | Caterpillar |
| Displacement | 14.64L, 14640 ccm |
| KW | 280/325/305/435 HP |
| RPM Max | 1800 |
| Fuel | Diesel |
| Angle α (compressor housing) | 302° |
| Angle β (turbine housing) | 72.5° |
| Bearing Housing | 174246 |
| Turbine Wheel | 169346 (Ind. 81.74 mm, Exd. 91.44 mm, 10 Blades) |
| Comp. Wheel (Hipped) | 171691 (Ind. 74.57 mm, Exd. 105.3 mm, Trm 53, 7+7 Blades, Billet) |
| Back plate | 167783 |
| Heat shield Number | 167790 |
| Repair Kit | 318396 (318397)(1253400750) |
| Turbine Housing (W. Wastegate) | 146697 |
| Compressor Cover | 174258 |
| Actuator | 170386 |
| Gasket Kit | 318417 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
| Replaced By | 466423-0001, 466423-0003, 466423-0004, 466423-0005, 466423-9001, 466423-9003, 466423-9004, 466423-9005, 170083, 466423, 169060 |
Caterpillar

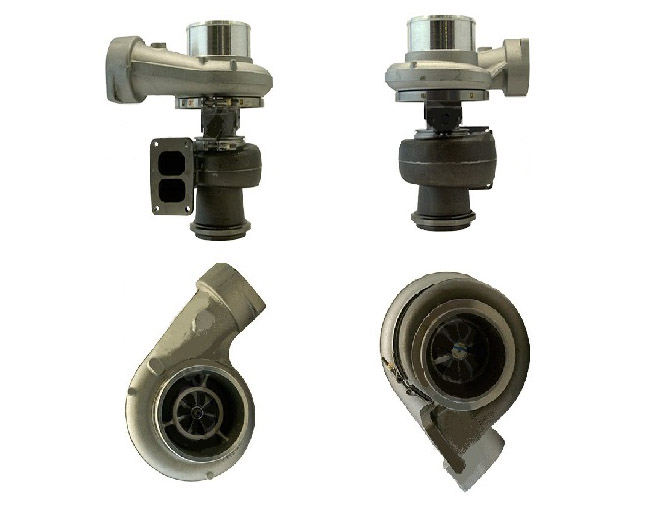

SUPART Caterpillar Various S410 Turbo 174269
Applications
1996-07 Caterpillar Various with 3406E Engine
