| Part Number | 3530994 |
| Previous Part Number | 3530995, 3529466 |
| OE number | 3802256 |
| Year | 1981-99 |
| Description | Various Truck |
| Manufacturer Part Number | 3529467, 3530384, 3532965, 3532966, 3529467, 3533901, 3533902, 3533906, 3534470, 3535002, 3535579, 3535612 |
| CHRA | 3545416 |
| Turbo Model | WH1E-8284BK/JB19KB8, WH1E |
| Engine | 6CTA 6CTAA |
| Displacement | 8.3L, 8300 ccm |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Angle α (compressor housing) | 158/180/182/212/220/270/291/315/320/335º |
| Angle β (turbine housing) | 15/22/133/138/159/220º |
| Bearing Housing | 3530592 (3530591)(1152301450) |
| Turbine Wheel | 3522879 (3535359)(Ind. 76. mm, Exd. 64. mm, 12 Blades)(1152301436) |
| Comp. Wheel | 3599643 (Ind. 58. mm, Exd. 83. mm, 8+8 Blades) |
| Back plate | 3522801 |
| Heat shield Number | 3519302 (3519304)(1152301340) |
| Repair Kit | 4027309 (3545652)(1152301750) |
| Turbine Housing | 4030336 |
| Compressor Cover | 3528380 |
| Actuator | 3529856 |
| Gasket (turbine inlet) | 407294-0001 (312617) |
| Gasket (oil outlet) | 210021 (210023-0000, 147837, 210023, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) |
| Manufacturer | HOLSET |
Cummins

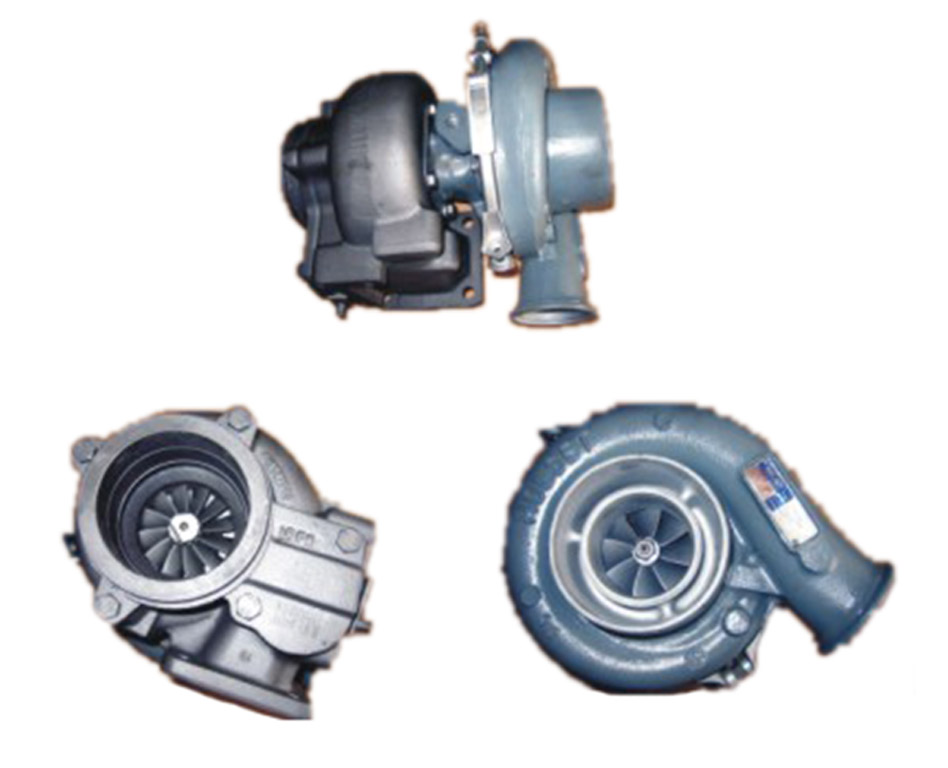

SUPART CDC, Cummins Various WH1E Turbo 3530994
Applications
Dodge Truck with 6CTA Engine
1981-99 CDC, Cummins Various with 6CTA Engine
