| Part Number | 53049880002 |
| Previous Version | 5304-988-0002, 5304 988 0002 |
| OE number | 35242037F, 04723225 |
| Year | 1992-04 |
| Description | Chrysler Grand Voyager, VM |
| Manufacturer Part Number | 53049700002, 5304-970-0002 |
| CHRA | 53047100501 (5304-710-0501) |
| Turbo Model | K04-2072GAA5.82GCAAD |
| Engine | HR425CLIEE, M00/09B, 425CLIRS/X |
| Displacement | 2.5L, 2499 ccm |
| KW | 87/118 |
| RPM Max | 4200 |
| Fuel | Gasoline |
| Angle α (compressor housing) | 245º |
| Angle β (turbine housing) | 250º |
| Bearing housing | 53041500004/53041510000/53041500011 |
| Turbine Wheel | 53041205010/53041202101/53041202100/53041205008 |
| Comp. Wheel | 53041232007/53041232007/53041232001/53041232018 |
| Back plate | 53041515702/53041515702 |
| Heat Shield | 53041652000 |
| Repair Kit | 53037110000 |
| Turbine Housing | 53041009005/53041009004 |
| Compressor Cover | 53041005002 |
| Turbine Housing AR | 5 |
| Actuator | 58201104000 |
| Settings Waste gate (pressure) | 1.50 bar |
| Settings Waste gate (lift shaft) | 2.50 mm |
| Gasket (turbine inlet) | 210229 |
| Gasket (turbine outlet) | 210231 |
| Gasket (oil outlet) | 210317 |
| NOTE | Inter cooler |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Chrysler

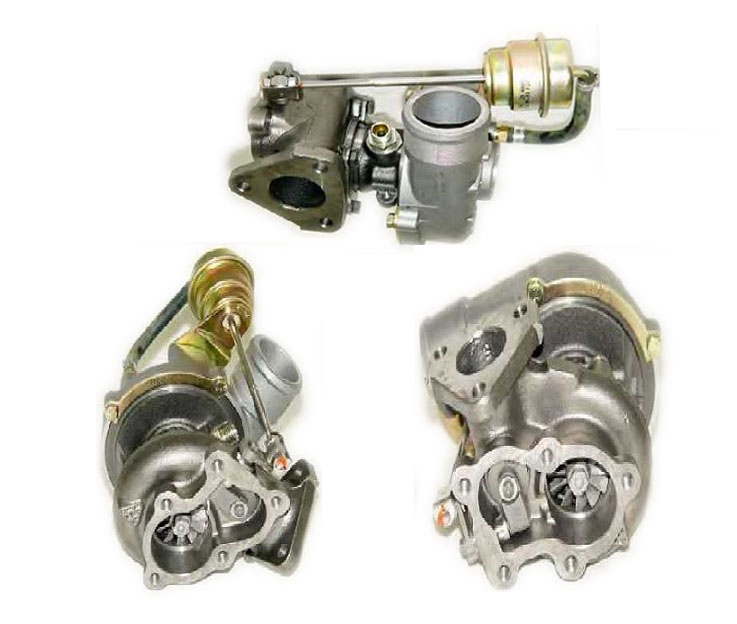

SUPART Chrysler Grand Voyager, VM K04 Turbo 53049880002
Applications
1992-04 Chrysler Grand Voyager with HR425CLIEE Engine
1992-04 VM Motori Chrysler Grand Voyager with HR425CLIEE Engine
