| Part Number | 53039880081 |
| Previous Version | 5303-988-0081, 5303 988 0081, 53039880054 |
| OE number | 500364493, 0375F6, 500344801 |
| Year | 2003-04 |
| Description | Commercial |
| Manufacturer Part Number | 53039700081, 53039700054, 5303-970-0081, 5303-970-0054 |
| CHRA | 53037100522 (53037100523, 5303-710-0522)(1302003923, 1000030182) |
| Turbo Model | K03-2076CCA6.88KCAXD |
| Engine | 8140.43.2200 Euro 3 |
| Manufacturer Engine | Iveco |
| Displacement | 2.8L, 2800 ccm |
| KW | 94/128 |
| RPM Max | 3600 |
| Fuel | Diesel |
| Angle α (compressor housing) | 265° |
| Angle β (turbine housing) | 230° |
| Bearing Housing | 53041500011 (53041500003, 53041500010, 53041500014)(1302004451) |
| Turbine Wheel | 53031205037 (53031205023)(Ind. 45. mm Exd. 40.5 mm, 9 Blades)(1302003435) |
| Comp. Wheel | 53041232201 (53041232024)(Ind. 38.5 mm Exd. 51. mm, Trm 2076, 6+6 Blades, Superback)(1302003406) |
| Back plate (O-ring type) | 53041515716 (53041515712)(1302003304, 1302003305) |
| Heat shield Number | 53031652000 (1302003340)(Recessed Top) |
| Repair Kit | 53037110001 (1302003751) |
| Turbine Housing | 53031009081/53031009113 |
| Compressor Cover | 53041015215 |
| Turbine Housing AR | 6 |
| Actuator | 58201104176 |
| Gasket (turbine inlet) | 210360 (Stainless Steel) |
| Gasket (turbine outlet) | 210350 (Stainless Steel) |
| Gasket (oil outlet) | 210243 (Paper) |
| Replaced By | 49377-07050, 49377-07052 |
| NOTE | Replacement for K03-0054; complete replacement turbo only |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Citroen

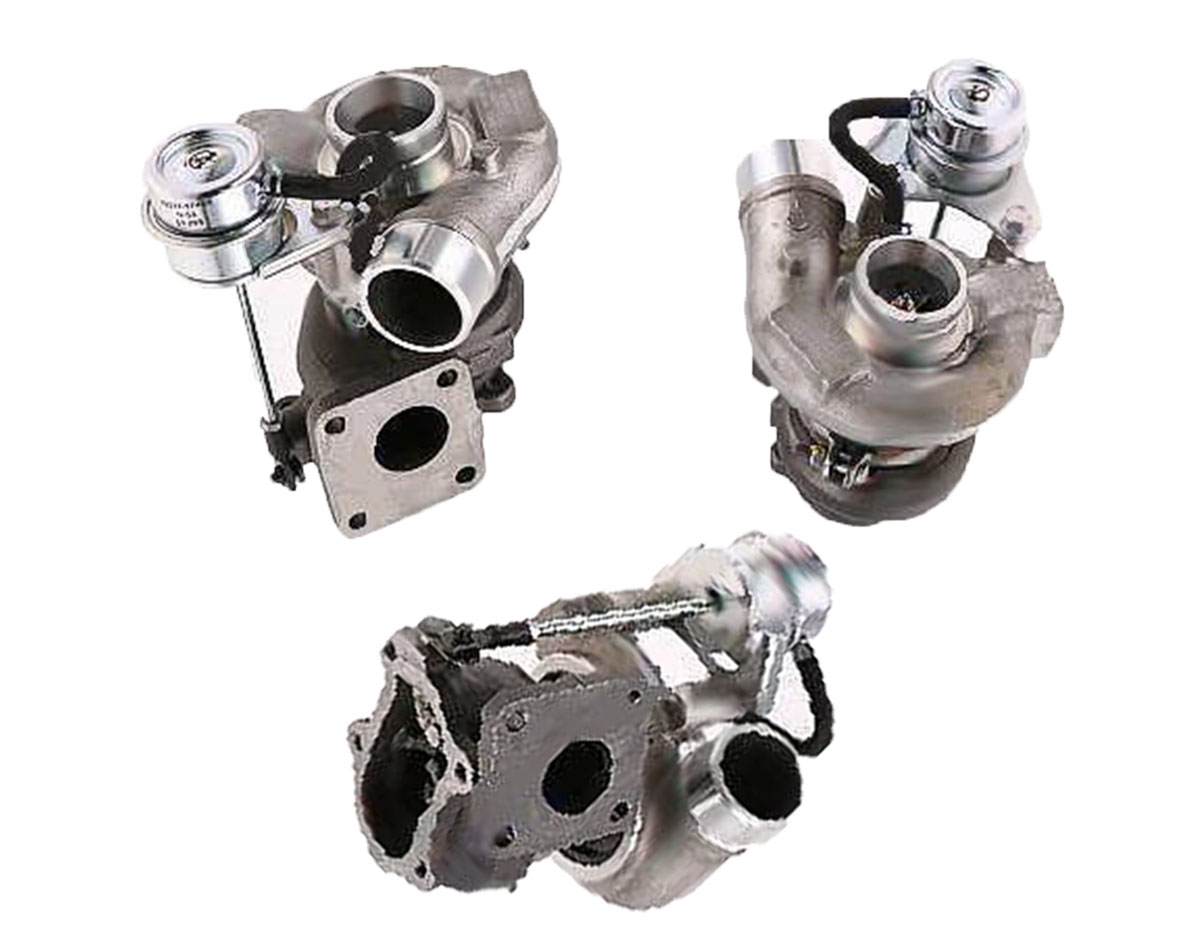

SUPART Citroen Commercial Vehicle K03 Turbo 53039880081
Applications
2001- Citroen Jumper 2.8 HDI Engine 8140.43.2200 Euro 3
2001-2006 Fiat Ducato II 2.8 JTD Engine 8140.43S
2001- Peugeot Boxer II 2.8 HDI Engine SOFIM 2800 HDI
