| Part Number | 3534921 |
| Previous Part Number | 3534920, 3534922 |
| OE number | 3802777, 380277700, 3802777NX, 3802777RX |
| Year | 1994- |
| Description | Freightliner, Truck |
| Manufacturer Part Number | 3534922, 3539262, 3534922H |
| CHRA | 3537815 (353781500, 3537815H)(1000020136) |
| Turbo Model | HX35W, HX35W-8274L/E12DC11 |
| Engine | 6BT, 6BTA |
| Engine Manufacturer | Navistar |
| Displacement | 6.0L, 6000 ccm |
| Fuel | Diesel |
| KW | 175 HP |
| Angle α (compressor housing) | 240° |
| Angle β (turbine housing) | 165° |
| Bearing Housing | 3532632 (4027869, 4027443)(84.50 mm)(Oil Cooled) |
| Turbine Wheel | 3519336 (3595832) (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435) |
| Comp. Wheel | 3599593 (3537167) (Ind. 56. mm, Exd. 83. mm, 8+8 Blades, Super back) |
| Back plate | 3530923 (1154351300) |
| Heat shield Number | 3519302 (1152301340) |
| Repair Kit | 3575169 (1153035750) |
| Actuator | 3533948 |
| Gasket Kit | 3545575 |
| Gasket (turbine inlet) | 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) |
| Gasket (Cover plate) | 3535001 |
| Gasket (oil outlet) | 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) |
| Manufacturer | HOLSET |
Ford

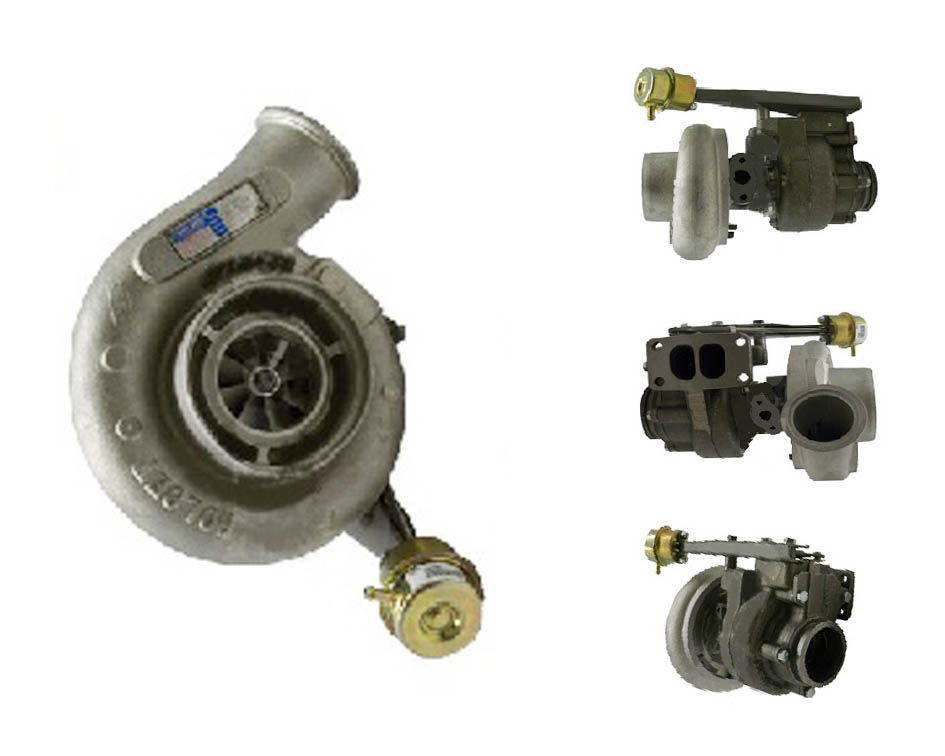

SUPART Cummins Ford Freightliner Truck HX35W Turbocharger 3534921
Applications
1994- Cummins Ford Freightliner Truck with 6BT Engine
