| Part Number | 3524034 |
| Previous versions | 316468, 3520031, 3524034, 3524035, 352403500, 3524035H, 3527370, 3527371, 3528777, 3528778, 3528793, 3530716, 3802126, 3802126NX, 3802126RX, 3802303, 380230300, 3802303NX, 3802303RX, 3802307NX, 3802307RX, 3802309, 3802309NX, 3802309RX, 3909308, 3909309, 3919199, 465843-0001, 466589-0001 |
| OE number | 75208275, FJR802303, J802303, J909308, J919199, JR802303, JR909308, JR919199 TS3524034, TS3524034R, TS3527370, TS3527370R |
| Description | Case-New Holland Industrial |
| Year | 1986-03 |
| Turbo Model | H1E, H1E-8263AE/FA26CA11 |
| CHRA | 3545701 (3537826, 3545701H, 3545701000, 316469)(1000020154) |
| Engine Model | 6BT, 6CT, 6CTA |
| After-market For OE | 3524035 |
| Engine | 6CTA, 8.3L |
| Displacement | 5.9l, 5900 ccm |
| Fuel | Diesel |
| Engine Manufacturer | Cummins |
| Angle α (compressor housing) | 345º |
| Angle β (turbine housing) | 15º |
| Bearing Housing | 3500591 (3500592, 3530591, 3530592, 316519)(Oil Cooled)(1152301450, 1900011017) |
| Turbine Wheel | 3522880 (3592708, 314372)(Ind. 75.94 mm, Exd. 67.05 mm, 12 Blades)(1152301437, 1100030009) |
| Comp. Wheel | 3599637 (316518)(Ind. 54. mm, Exd. 81.58 mm, 8+8 Blades, Superback)(1200016158) |
| Back plate | 3522801 (167543) |
| Heat shield Number | 3519302 (167550)(2030016031) |
| Repair Kit | 4027309 (3802148, 3545652, 318393)(1152301750, 5000020014) |
| Turbine Housing | 3522747 |
| Compressor Cover | 3521693 |
| Gasket (turbine inlet) | 407294-0001 (310694) |
| Gasket (oil outlet) | 210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) |
| Gasket Kit | 215181 |
| Manufacturer | HOLSET |
Cummins

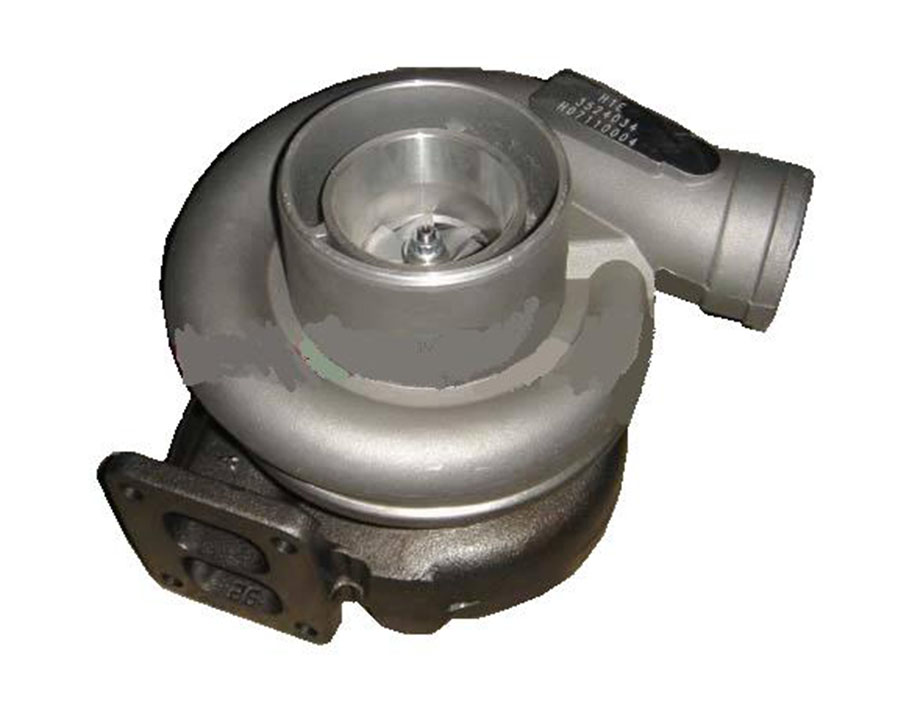

SUPART Cummins Industrial H1E Turbo 3524034
Applications
1986-03 Cummins Industrial 6CTA Engine
