| Part Number | 3526625 |
| Previous versions | 3526626, 352662600, 352662600H, 3526626H, 3526626NX, 3526626RX, 3528787, 3528788, 3528788NX, 3528788RX |
| OE number | 3802306, 3802306NX, 3802306RX, 3919217, 3919217NX, 3919217RX |
| Description | Marine |
| CHRA | 3545744 (3545744H) |
| Turbo Model | H1E, H1EM, H1E-8294AX/J16S3 |
| Displacement | 6L, 5900 ccm |
| KW | 300/330 HP |
| NSN | 2950013529965 |
| Engine Manufacturer | Cummins |
| Engine | 6B-TAM, 6BTAM |
| Fuel | Diesel |
| KW | 300 HP |
| Angle α (compressor housing) | 301° |
| Angle β (turbine housing) | 241° |
| Bearing Housing | 3530591 (3500591, 3500592, 3530592)(Oil Cooled)(1152301450) |
| Turbine Wheel | 3525687 (3536624)(Ind. 75. mm, Exd. 62. mm, 12 Blades) |
| Comp. Wheel | 3599642 (Ind. 60. mm, Exd. 81.73 mm, 8+8 Blades, Superback)(1152301401) |
| Back plate | 3522801 (167543) |
| Heat shield | 3519302 (3519304, 167550)(1152301340) |
| Repair Kit | 3545652 (4027309)(3802148, 318393)(1152301750) |
| Turbine Housing (Water Cooled) | 3525691 |
| Compressor Cover | 3525359 |
| Gasket (turbine inlet) | 210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine) |
| Gasket oil inlet | 210850 (392196100)(Inox Steel) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Replaces | 3528787, 3528788 |
| Manufacturer | HOLSET |
Cummins

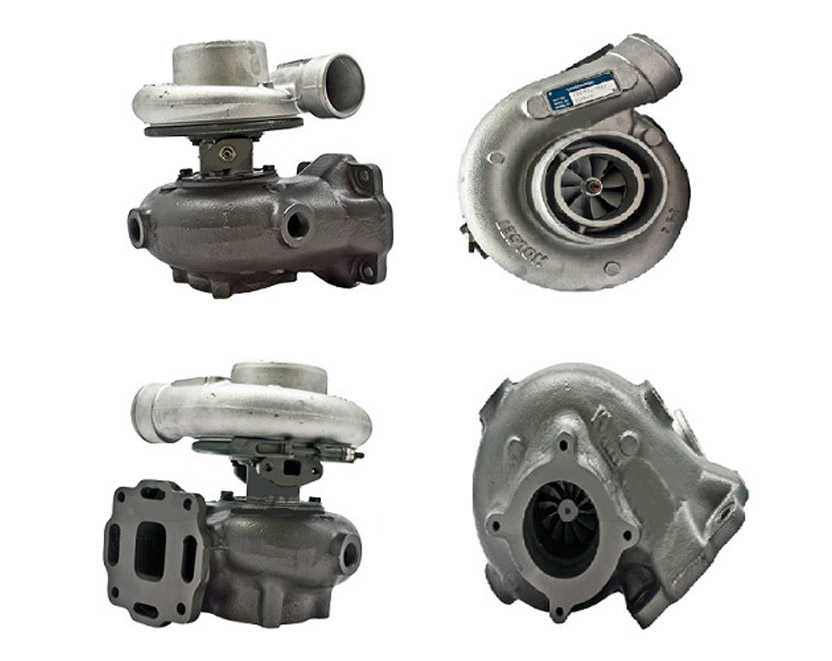

SUPART Cummins Marine H1E Turbo 3526625
Applications
1988-04 Cummins Marine with 6BTAM Engine
