| Part Number | 3523244 |
| Previous versions | 3523245 |
| OE number | 3802291 |
| Description | Truck, MARINE |
| CHRA | 3545699 |
| Turbo Model | H1C-8243AF/J13S5, H1C |
| Engine | 4BT, 6BT |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Angle α (compressor housing) | 199.5/241° |
| Angle β (turbine housing) | 301/360° |
| Bearing Housing | 3502500 (3530592, 3520574, 3530591)(1152301450) |
| Turbine Wheel | 3503798 (Ind. 70, mm, Exd. 57. mm, 12 Blades) |
| Rotor Assembly | 3545526 |
| Comp. Wheel | 3599639 (3521711)(Ind. 50. mm, Exd. 83. mm, 8+8 Blades)(1152301400) |
| Back plate | 3534947 (166537) |
| Heat shield Number | 3519302 (194149) (1152301340) |
| Repair Kit | 4027309 (3545652, 3802148)(1152301750) |
| Turbine Housing | Water Cooled |
| Gasket Kit | 3545769 |
| Gasket (turbine inlet) | 409039-0000 (312617, 2405022, 7C7431) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | HOLSET |
Cummins

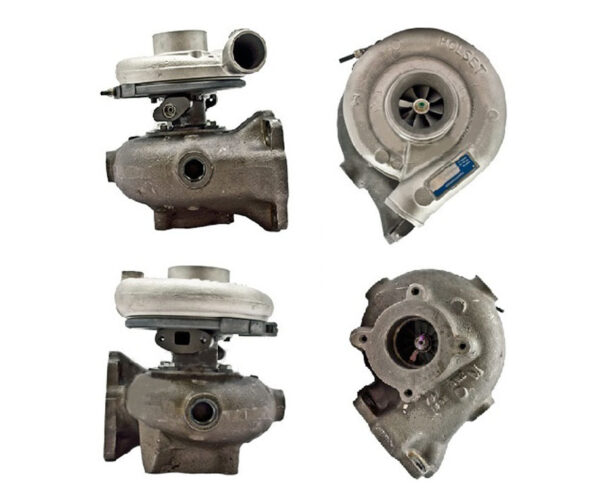

SUPART Cummins Marine, Truck H1C Turbo 3523244
Applications
1985-10 Cummins Marine, Truck with 4BT, 6BT Engine
