| Part Number | 196441 |
| Previous Version | 1080063R, 196441R, 496441 |
| OE number | 3523273, 3801617, 3522865, 3522866, 3801613, 3524206, 3523272, 3521830, 3521053, 3801613RX, 3801476RX |
| Year | 1986- |
| Description | Truck (Class 3-8) |
| CHRA | 196477 (4027924, 4027929, 3811555, 167212) |
| Turbo Model | BHT3B, HT3B |
| Engine | NTCC350, NTC350, NTA855, NTA-855-C, CPL 706 |
| CPL(s) | 2, 3, 4, 7, 8, 9, 13, 16, 18, 19, 20, 70, 71, 75, 85, 88, 89, 91, 92, 93, 104, 108, 113, 125, 132, 133, 147, 161, 164, 173, 175, 180, 181, 182, 202, 204, 207, 221, 230, 250, 254, 260, 271, 276, 280, 285, 294, 306, 308, 314, 316, 317, 318, 328, 332, 339, 346, 349, 361, 363, 365, 366, 369, 371, 372, 375, 376, 380, 381, 382, 407, 408, 411, 412, 414, 431, 436, 450, 452, 453, 455, 456, 458, 462, 463, 466, 467, 468, 471, 482, 483, 485, 488, 494, 495, 497, 509, 512, 516, 517, 530, 536, 538, 539, 541, 543, 545, 547, 572, 575, 609, 611, 612, 615, 616, 632, 637, 669, 677, 706, 732, 744, 746, 757, 769, 794, 795, 988, 1205, 1409, 1546, 1650 |
| Engine Manufacturer | Cummins |
| Displacement | 5.7L, 5700 ccm |
| KW | 261 |
| RPM Max | 1900 |
| Fuel | Diesel |
| Angle α (compressor housing) | 350° |
| Angle β (turbine housing) | 261° |
| Bearing Housing | 196117 (Oil Cooled) |
| Turbine Wheel | 196370 (Ind. 86.3 mm, Exd. 97. mm, Trm 17.19, 12 Blades)(1100030011) |
| Comp. Wheel | 196397 (196893) |
| Back plate | 166084 (3500710, 3759618, 59618, 183472, 143144-0000)(1150704300) |
| Heat shield Number | 196342 |
| Repair Kit | 318352 (196006, 3545669) |
| Turbine Housing | 196290 |
| Compressor Cover | 196322 |
| Turbine Housing AR | 32 (4.81 Area/1.3 A/.R) |
| Gasket Kit | 318417 (3534521, 3580526, 173035) |
| Manufacturer | Borg Warner - 3K - Schwitzer, Holset |
Cummins

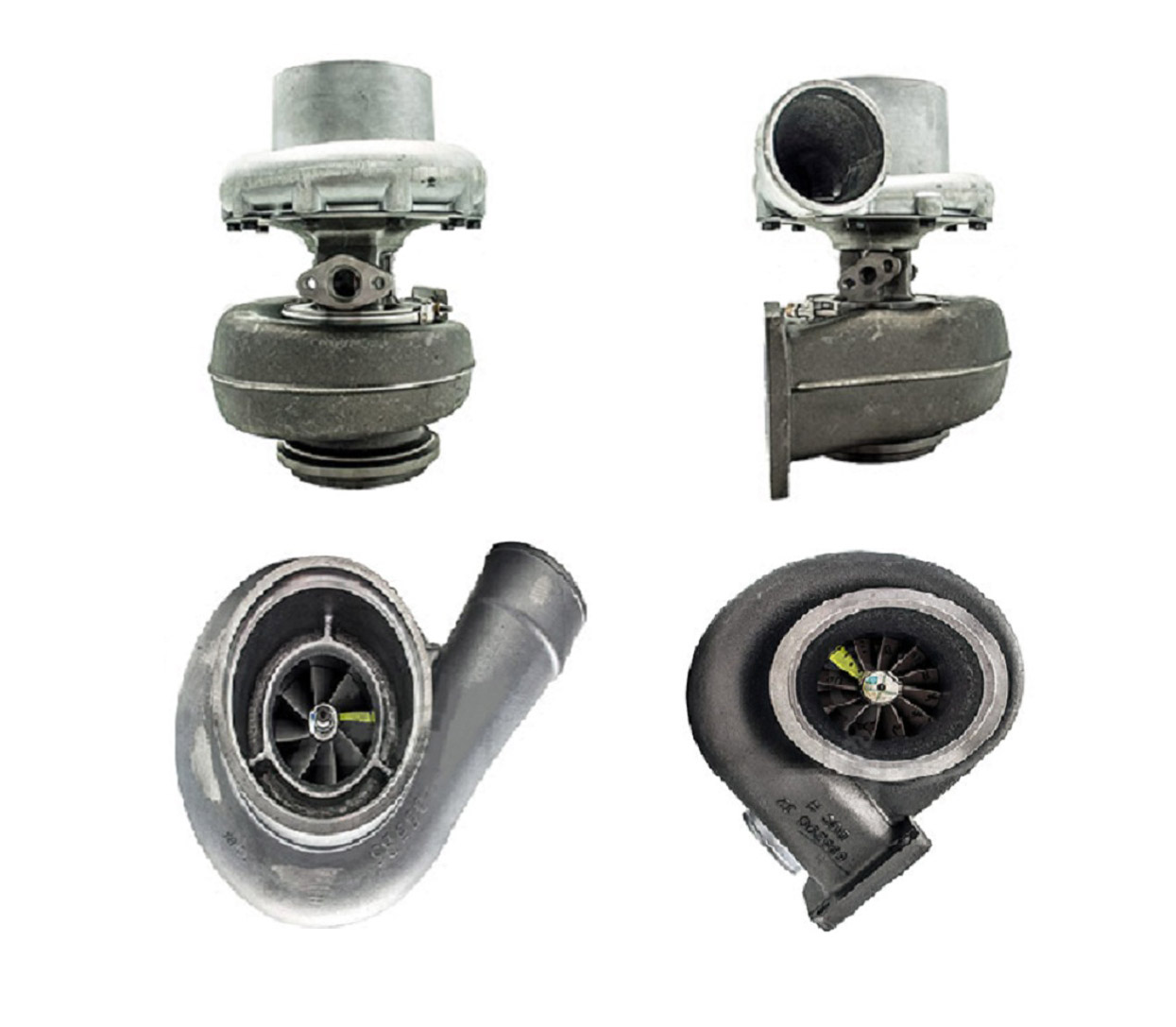

SUPART Cummins Truck BHT3B Turbo 196441
Applications
1986- Cummins Truck with NTCC350, NTC350, NTA855 Engine
