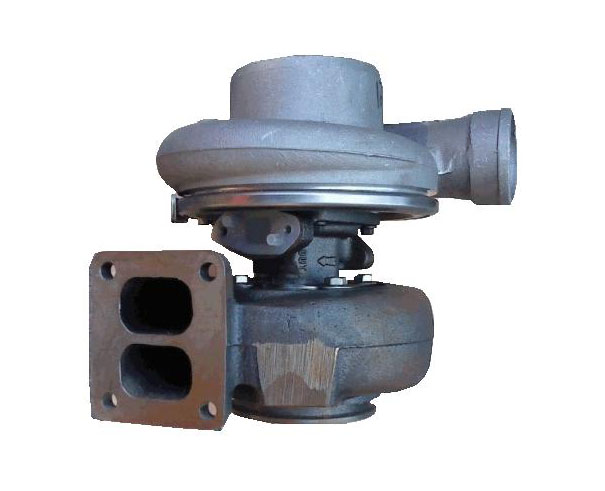

| Part Number | 3525488 |
| Previous Version | 3525127, 3528779, 3525487, 352548700, 352548700H, 3525487H, 3525487NX, 3525487RX, 3525488, 3525488RX, 3525488NX |
| OE number | 3536684, 3536684NX, 3536684RX, 3536685,3536685NX, 3536685RX, 3536686, 3536686NX, 3536686RX, 3802321, 3802321NX, 3802321RX |
| Description | CDC Truck |
| Manufacturer Part Number | 3911354, 3911353, 3911355, 3525128, 3536684, 3536685, 3536686, 3528780 |
| CHRA | 3545698 (3545698H) |
| Turbo Model | H1E-8294AX/FA22SA11, H1E |
| Displacement | 8.3L, 8300 ccm |
| Fuel | Diesel |
| Engine Manufacturer | Cummins |
| KW | 210/250 HP |
| Engine | C Series, 6CT, 6CTA |
| Angle α (compressor housing) | 193/315/345/360° |
| Angle β (turbine housing) | 15/222/360° |
| Bearing Housing | 3530591 (3500592, 3500591, 3530592)(Oil Cooled)(1152301450) |
| Turbine Wheel | 3522880 (3592708)(Ind. 76. mm, Exd. 67. mm, Trm 12.32, 12 Blades)(1152301437) |
| Comp. Wheel | 3599642 (Ind. 59.99 mm, Exd, 81.73 mm, Trm 11., 8+8 Blades, Superback)(1152301401) |
| Back plate | 3522801 (3522801H) |
| Heat shield Number | 3519302 (3519302H) |
| Repair Kit | 4027309 (3802148, 7B0673)(1152301750) |
| Gasket Kit | 3575687 (3575687H) |
| Replaced by | 3525487, 466589-0002 |
| Manufacturer | HOLSET |
