| Part Number | 3529190 |
| OE number | 3803635, 3803685, 3803685RX |
| Year | 1990-04 |
| Description | Cummins Komatsu WA600, Cummins NTC444 KTA19, Various (Bus) |
| Manufacturer Part Number | 3529191 |
| CHRA | 3525301 (3525301H, 4027578)(311312)(1000020121, 400020002) |
| Turbo Model | H2D-9351BA/X22Q11, H2D, HT4C |
| Engine | KTA19, LTTA-325 |
| Engine Manufacturer | Cummins |
| KW | 325 |
| Fuel | Diesel |
| Bearing Housing | 3525199 (Oil Cooled)(1900011204) |
| Turbine Wheel | 3522773 (Ind. 86. mm, Exd. 77. mm, Trm 13.3, 11 Blades)(1152302436, 1100016087) |
| Comp. Wheel | 3524808 (Ind. 63.42 mm, Exd. 93.92 mm, Trm 12.56, 8+8 Blades, Superback)(1200016361) |
| Back plate | 62564 (1800016038) |
| Heat shield Number | 3529846 (3533038)(2030016003) |
| Repair Kit | 3545653 (1152302750, 5000020017) |
| Gasket (turbine inlet) | 409038-0000 (132040, 3500683, 202873, 205396, 1S4295, 9749, 210017-0000)(1900000003) |
| Gasket (turbine outlet) | 210239 (Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | HOLSET |
Cummins

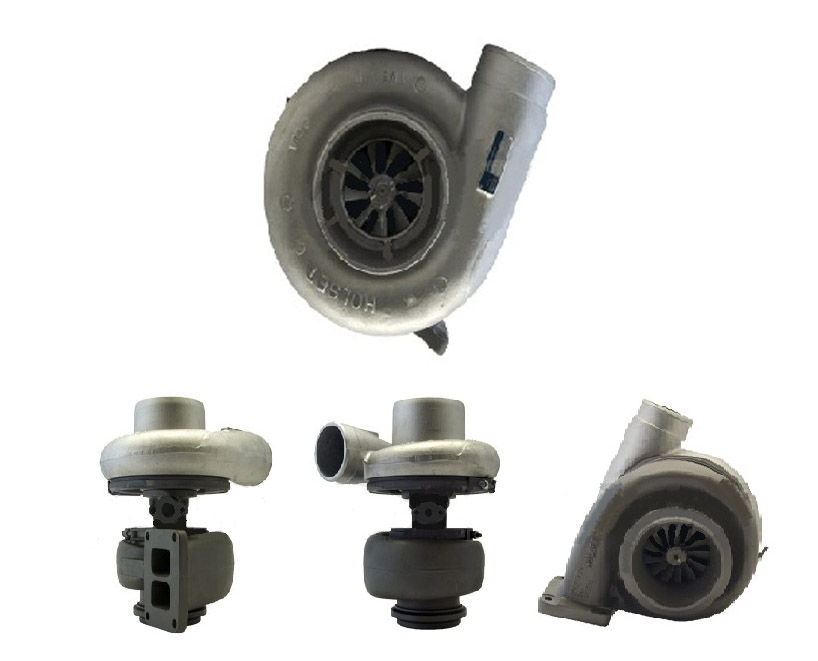

SUPART Cummins Various (Bus) H2D Turbo 3529190
Applications
1990- Cummins Komatsu WA600 with LTTA-325 Engine
1990-04 Cummins Various (Bus) with LTTA-325 Engine
