| Part Number | 3528918 |
| Previous Part Number | 3525700, 3528918 |
| OE number | N/A |
| Description | Trucks & XMQ Buses Various Cummins (CTT) |
| Manufacturer Part Number | 3528918, 3528919, 3535444, 3535445, 3535446 |
| CHRA | 3545697 |
| Turbo Model | H1C, H1C-8223AF/E16DA11 |
| Engine | 4BTA, 4BT, 4BTAA |
| Engine Manufacturer | Cummins |
| Displacement | 3.9L, 3900 ccm |
| KW | 1105/18/120 |
| Fuel | Diesel |
| Angle α (compressor housing) | 220/282/333/340° |
| Angle β (turbine housing) | 20/169/360° |
| Bearing Housing | 3530591/3530592 (1152301450) |
| Turbine Wheel | 3519336 (Ind. 70.0 mm, Exd. 59.9 mm) (1152301435) |
| Comp. Wheel | 3599641 (Ind. 83. mm, Exd. 46. mm, 8+8 Blades) (1152301402) |
| Back plate | 3522801 |
| Heat Shield | 3519302 (1152301340) |
| Repair Kit | 3545652/4027309 (1152301750) |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Superseded | 3525699 |
| Manufacturer | HOLSET |
Cummins

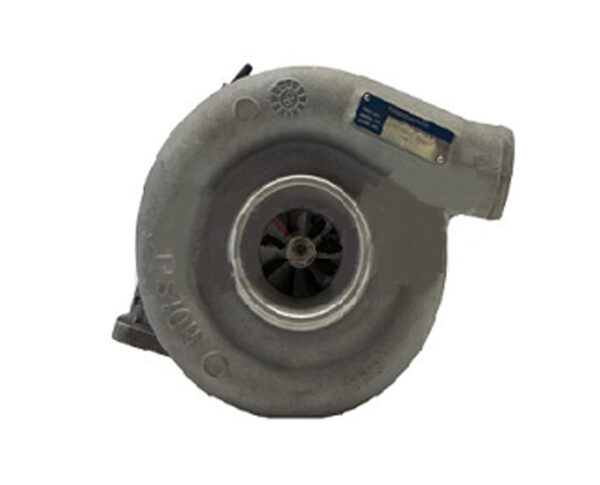

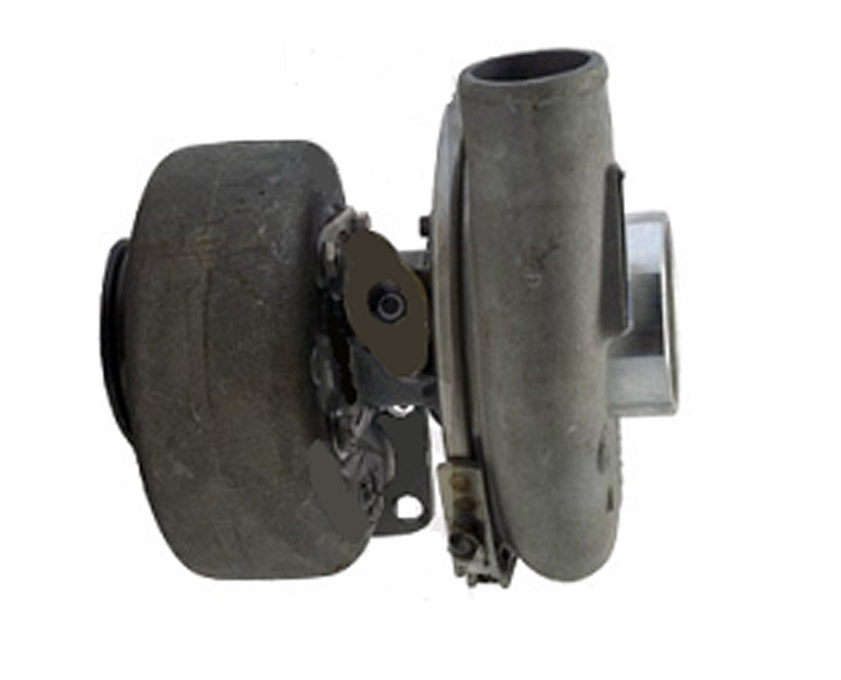

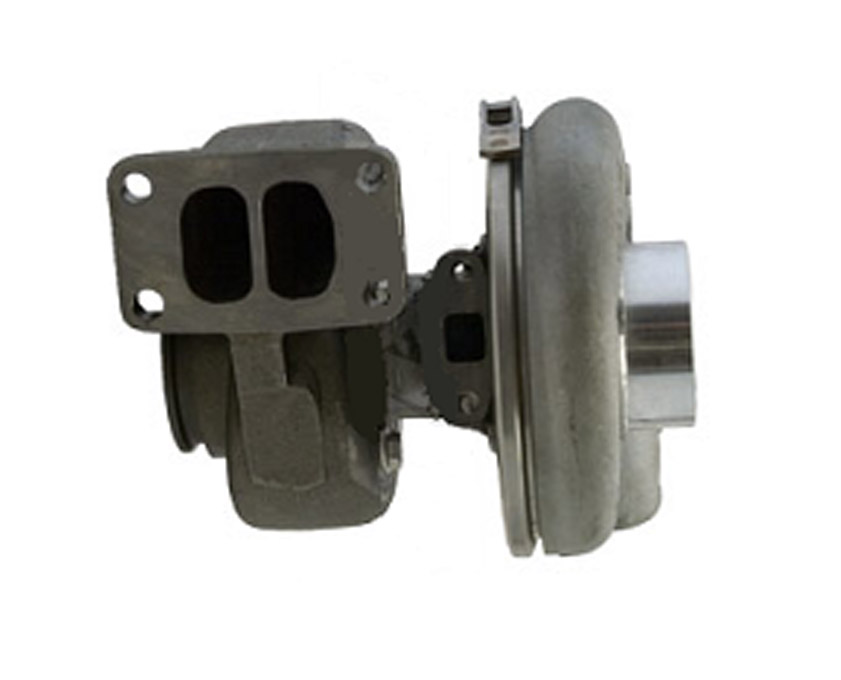

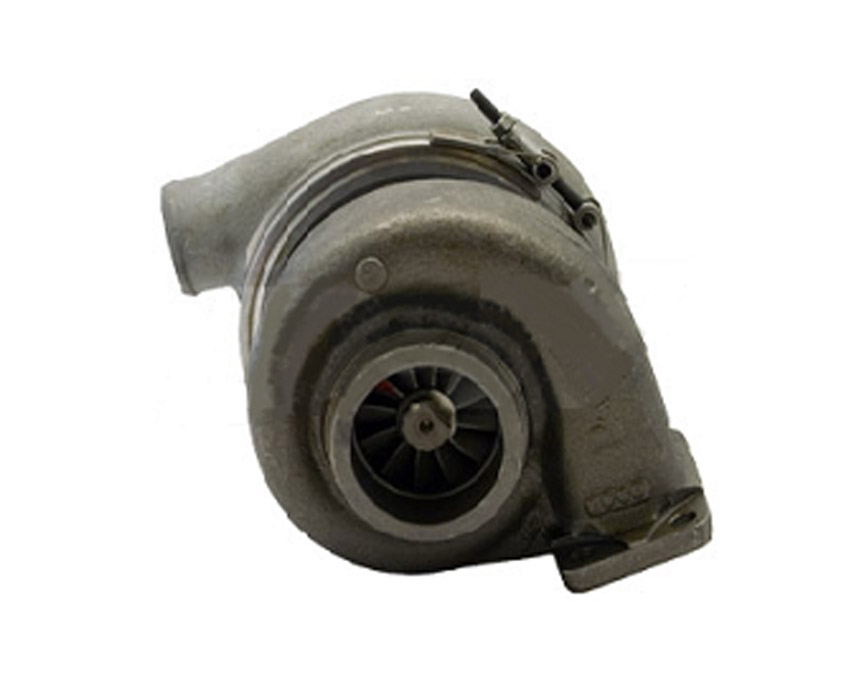

SUPART Cummins Various H1C Turbo 3528918
Applications
1989-10 Cummins Various with 4BTA Engine
1989-10 DFM TRUCKS & XMQ BUSES with 4BTAA Engine
