| Part Number | 3032058 |
| OE Number | 3801933, 3006326, 3032058, AR45428, AR45731, 3003709, AR12600, 3029514, 3007654 |
| Description | Various, GEN SET |
| Manufacturer Part Number | 3032058RXtd> |
| Turbo Model | ST50, T50 |
| CHRA | N/A |
| Engine | VTA, NH, NT Series, NT855, NTC-230, NTA855-P-350, NTC-350, NTA855, VT-1710-525/635, VT-1710-700, NT855 Brazil Alcohol |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Cummins CPL NO. | 201, 220, 260, 266, 270, 272, 307, 327, 335, 336, 372, 746 |
| Early Style | 3521052 |
| Later Style | 3522865, 3527693, 3522871 |
| H1 or H2 Turbo | 196441 |
| HT3B Turbo | 196463 |
| BHT3B, C, E Turbo | 167050 |
| 4LHR Turbo | Under 290 Hp use 193903 over 290 HP Use 197916 |
| NSN | 2990011722442 |
| Serial Number | 1504197 |
| Angle α (compressor housing) | 180° |
| Angle β (turbine housing) | 360° |
| Bearing Housing | 3038745 (188595, 303874500, 202376, 202392, 150024-0000)(1200050450) |
| Turbine Wheel | 3025390 (189003, 214086, AR10059, AR10204, 150012-0000)(1200050436) |
| Comp. Wheel | 3002731 (150009-0000)(8+8 Blades)(1200050428) |
| Back plate | 216804 (188597, 216805, 150544-0000) (1200050300) |
| Heat shield Number | 171570 (150021-0000)(1200050340) |
| Repair Kit | 3801096 (188553, AR07936, 3023555, 150314-0000)(1200050751) |
| Turbine Housing | 204244 |
| Compressor Cover | 3027305 |
| Gasket 6 bolt holes | 114753 (210086-0000)(Steel, 6 bolt holes)(1900000002) |
| Gasket 4 bolt holes | 190849 (210085-0000)(Steel, 4 bolt holes)(1900000001) |
| Gasket Kit | 3800172 |
| NOTE | Superseded 3529040 |
| Manufacturer | Honeywell-Garrett |
| Condition | Rebuilt |
Cummins

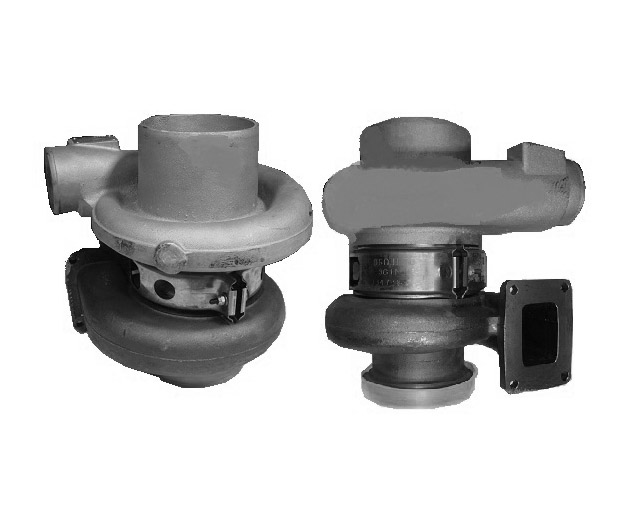

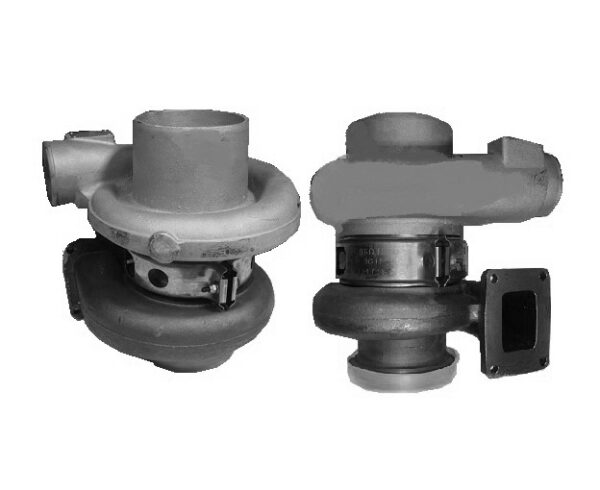

SUPART Cummins Various ST50 Turbo 3032058
Applications
1981-10 Cummins Gen Set Various with NH, NT Series Engine
