| Part Number | 318694 |
| OE number | 04260899KZ, 4260899KZ, 04260899, 4260899 |
| Year | 2001-02 |
| Description | Industrial Engine |
| Turbo Model | S200W |
| CHRA | 318695 |
| Manufacturer Part number | 318510 |
| Engine Model | BF6M1015C |
| Displacement | 11.91L, 11910 ccm |
| KW | 330/443 |
| RPM | 2100 |
| Fuel | Diesel |
| Angle α (compressor housing) | 252° |
| Angle β (turbine housing) | 0° |
| Bearing Housing | 167994 (Oil Cooled) |
| Turbine Wheel | 168431 (Ind. 55.95 mm, Exd. 69.6 mm, Trm 10.57, 10 Blades)(1253200436) |
| Comp. Wheel | 169937 (Ind. 53.25 mm, Exd. 76.3 mm, Trm 6.46, 7+7 Blades, Superback) |
| Back plate | 167744 (166537)(1253200300)(304020003) |
| Heat shield Number | 167997 |
| Repair Kit | 318383 (318394, 169032, 169636)(1253200750)(309200001) |
| Turbine Housing | 318689 |
| Compressor Cover | 318734 |
| Gasket (turbine inlet) single entry | 312617 (409039-0001, 210190-0000, 132044) |
| Gasket (oil outlet) | 311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021, 210021) |
| Gasket (oil inlet) | 147837 (409036-0000, 210023-0000, 55739, 210023) |
| Replaced BY | 318510 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Deutz

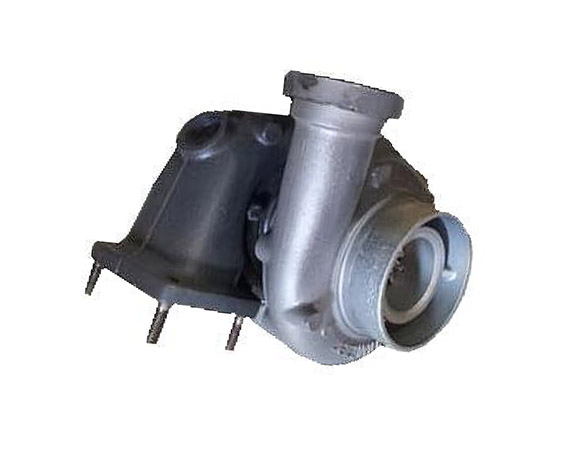

SUPART Deutz Industrial Engine S200W Turbo 318694
Applications
2001-02 Deutz Industrial Engine BF6M1015C
