| Part Number | 56209880013 |
| Previous Version | 5620-988-0013, 5620 988 0013, 56209880008, 12709880013 |
| OE number | 04903329, 04903626KZ, 04903626, 04903329, 04903626 |
| Year | 2003-07 |
| Description | Industrial |
| Manufacturer Part Number | 56201970008, 56201970013, 5620-197-0008, 5620-197-0013 |
| CHRA | 56207100000 (5620-710-0000) |
| Turbo Model | S200G, S200G-3071NRAKB/0.66 |
| Engine | TCD2013L6, TCD 2013LO6 |
| Engine Manufacturer | Deutz |
| Displacement | 7.14L, 7140 ccm |
| KW | 253/345 |
| RPM Max | 2200 |
| Fuel | Diesel |
| Angle α (compressor housing) | 270º |
| Angle β (turbine housing) | 45º |
| Bearing Housing | 56201500005 (Oil Cooled) |
| Turbine Wheel | 168431 (Ind. 55.65 mm, Exd. 69.6 mm, Trm 10.57, 10 Blades)(1253200436) |
| Comp. Wheel | 10771232001 (Ind. 54.7 mm, Exd. 78.6 mm, Trm 10.7, 7+7 Blades, Superback)(10771232001) |
| Back plate | 167744 (166537)(1253200300, 1800016062)(304020003) |
| Heat shield Number | 167997 |
| Repair Kit | 318378 (312956, 313501, 315438, 318381, 313076, 313654, 313922, 315362)(1252212750, 1252301755) |
| Turbine Housing AR | 0.64 |
| Manufacturer | Borg Warner – 3K – Schwitzer |
Deutz

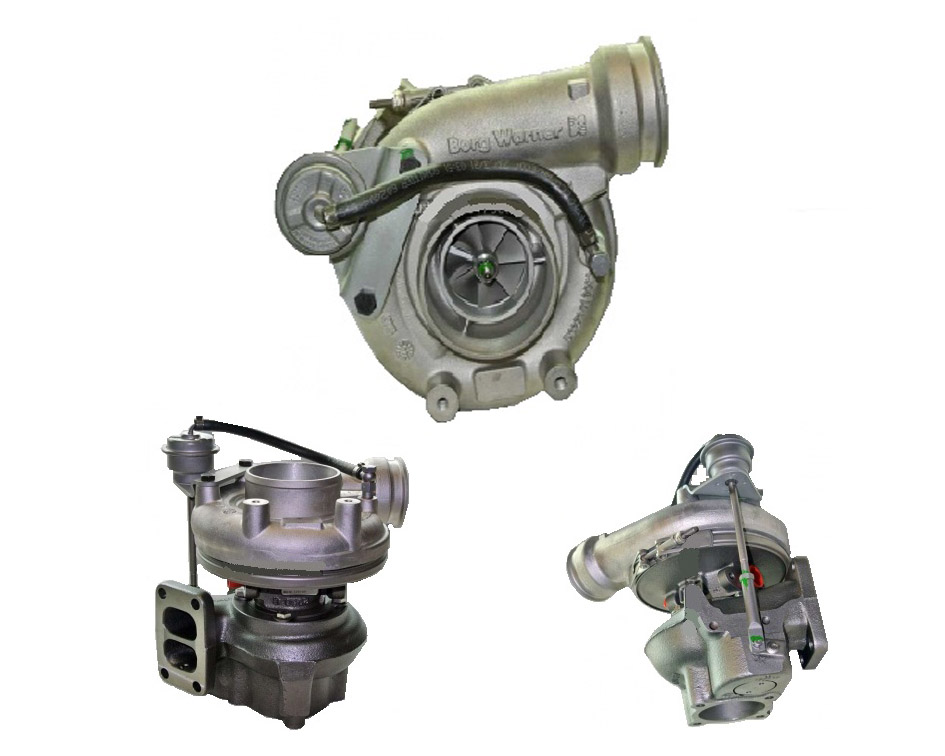

SUPART Deutz Industrial Tractor S200G Turbo 56209880013
Applications
2003-07 Deutz Industrial with TCD2013L6
